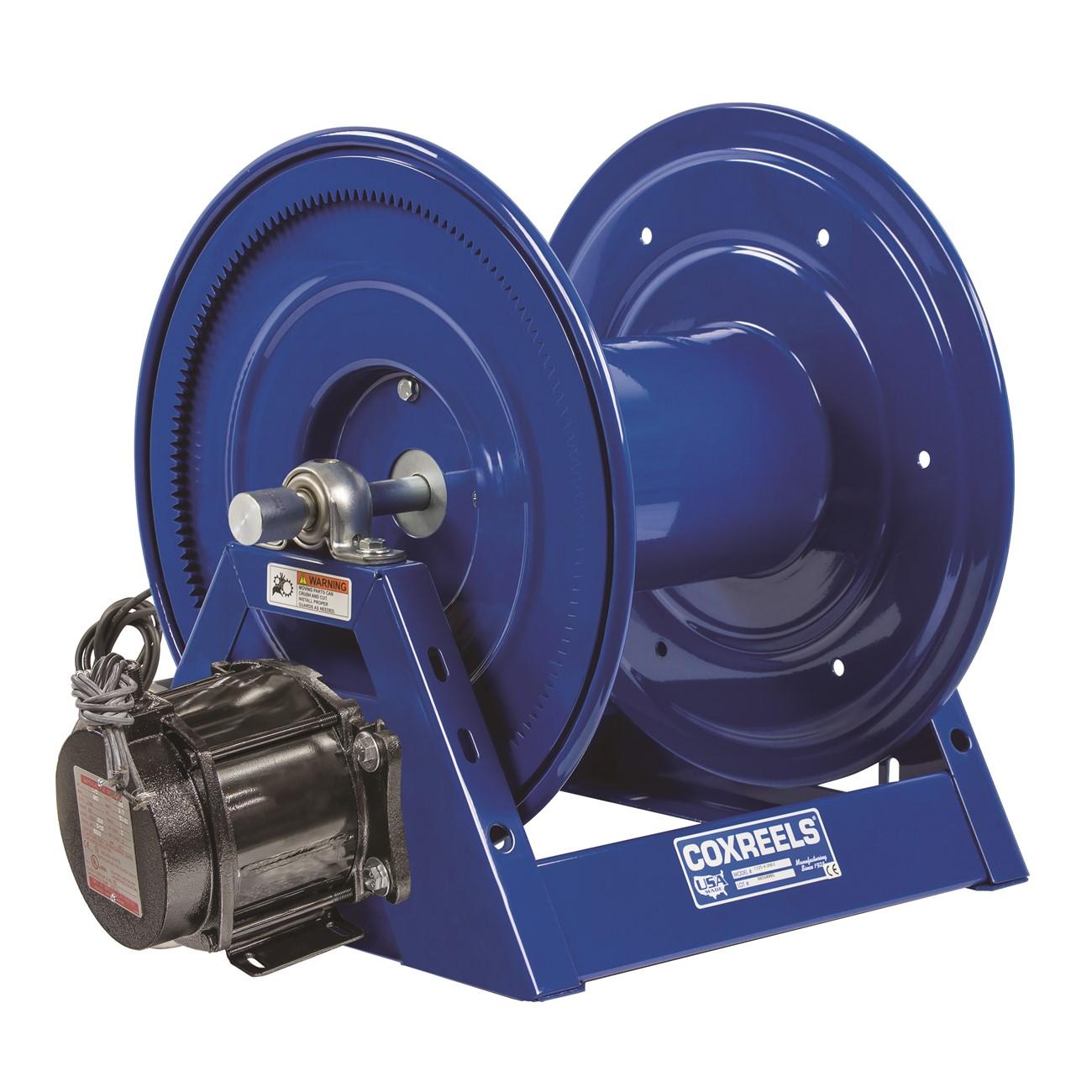

Coxreels 1125-4-325-EA-BYXX Motorized Storage Hose Reel

Product Description

The COXREELS 1125-4-325-EA-BYXX is a heavy-duty motorized storage hose reel built for trade professionals who need to manage long runs of hose, cord, cable, wire, rope, tape, or chain in demanding stationary or mobile applications. The unit is driven by a 115-volt AC, 1/2 HP reversible AC-rectified motor that controls both pay-out and retrieval. The reel frame is constructed from 1/4-inch steel using a fully CNC robotically welded one-piece A-frame base — no bolted joints — delivering a rigid structure suited for sustained industrial use. At 74 pounds, it is substantial equipment intended for fixed mounting or heavy-duty mobile rigs.

This storage reel is designed for applications where hose, collapsible hose, power cord, cable, rope, wire, barbed wire, tape, and chain must be stored and retrieved in long lengths without a swivel or riser connection. Typical installations include service vehicles, maintenance facilities, industrial work stations, and equipment yards where controlled high-volume storage and retrieval are routine. The motorized drive makes it practical for large-diameter or heavy material that would be difficult to hand-crank consistently.

Key Features

• 115V AC, 1/2 HP reversible AC-rectified motor for powered pay-out and retrieval
• No swivel and no riser — purpose-built for storage of long-length materials without flow requirements
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• One-piece fully CNC robotically welded 1/4-inch steel A-frame base — not bolted — with integrated mounting pattern for secure installation and removal
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Adjustable tension brake prevents free-wheeling during operation, transport, or storage
• CPC powder coat finish — chip-resistant and rust-inhibiting for long service life

Compatibility

Designed as an OEM-style storage reel for use with hose, cord, cable, rope, wire, tape, chain, and similar long-length materials in stationary or mobile industrial and service applications.

Installation Notes

Installation should be performed by a qualified electrician or mechanical technician familiar with 115V AC motor wiring and applicable NEC requirements. Disconnect and lock out electrical power before servicing the motor, brake, or bearings. The A-frame base includes a pre-drilled mounting pattern — secure all fasteners to the mounting surface before connecting power. Verify that the mounting surface rating is appropriate for the combined weight of the reel and its loaded material capacity.

Technical Specifications

• Motor Voltage: 115 volts AC
• Motor Output: 1/2 HP reversible AC rectified
• Frame Material: Steel (1/4-inch CNC welded A-frame)
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 74 pounds
• UPC: 674255846265

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-325-EA-BYXX
