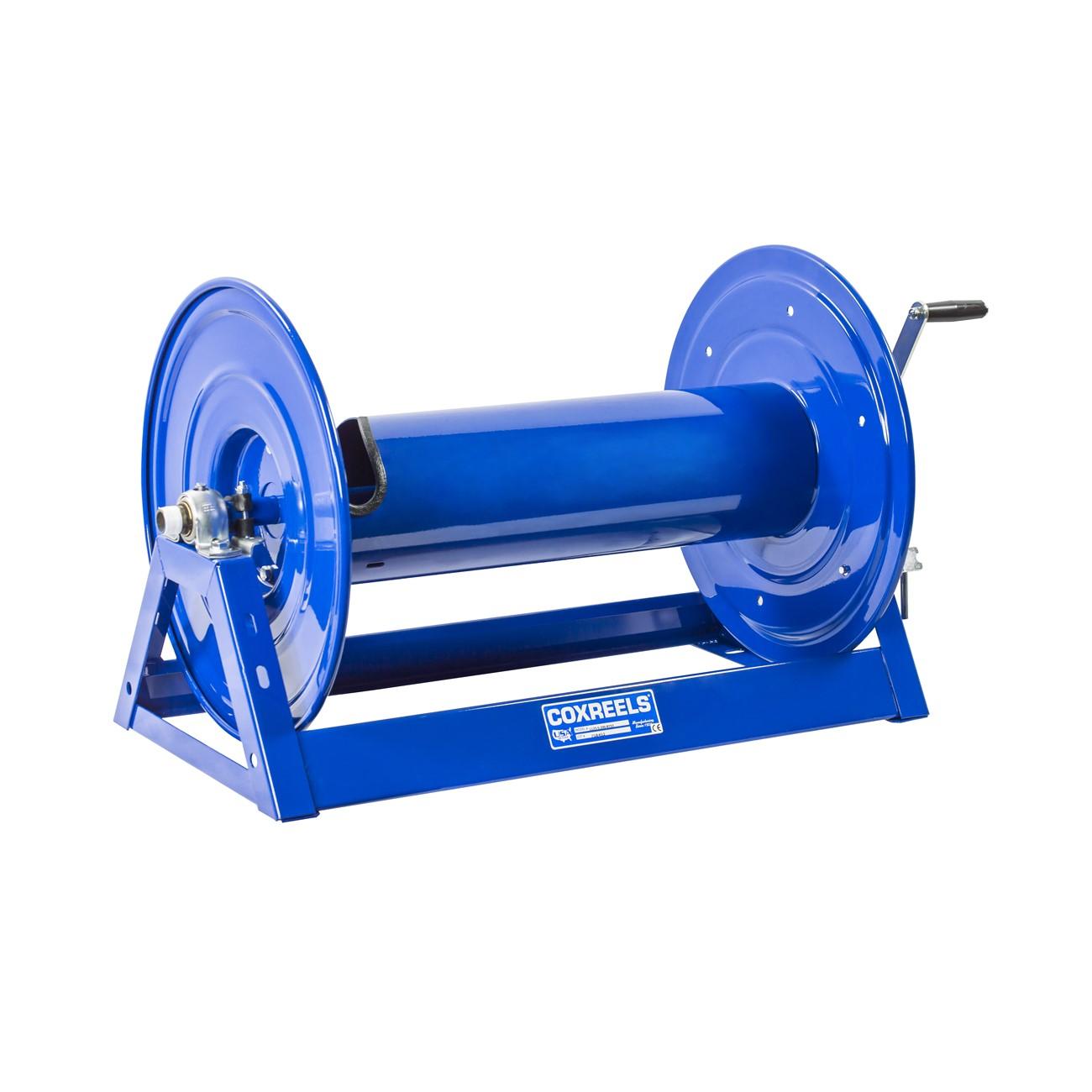

Coxreels 1125-4-325-BYXX Storage Hose Reel Steel Hand Crank

Product Description

The COXREELS 1125-4-325-BYXX is a heavy-duty steel storage hose reel designed for professionals who need to store and manage long lengths of hose, cord, cable, rope, wire, tape, or chain. Built around a one-piece all-welded A-frame base constructed from 1/4-inch steel, this reel delivers structural rigidity without relying on bolted joints. CNC robotically spun and ribbed steel discs with rolled edges protect stored material and reduce operator injury risk. A direct hand crank provides mechanical retraction, and an adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage. The unit ships as a single piece weighing 48 pounds.

The 1125-4-325-BYXX suits stationary or mobile installations across industrial, commercial, and trade environments. It is well suited for HVAC technicians, plumbers, electricians, and general contractors who need to store long runs of hose, power cord, cable, barbed wire, collapsible hose, or similar flexible materials. The reel carries no swivel and no riser, making it strictly a storage and retrieval unit rather than a fluid-transfer reel. Overall footprint measures 31 inches long by 21 inches wide by 21 inches high, supporting installations in service vehicles, shop floors, or fixed utility areas.

Key Features

• One-piece all-welded 1/4-inch steel A-frame base with integrated mounting pattern for easy installation and removal
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and material protection
• Adjustable tension brake prevents free-wheeling during operation, transport, and storage
• Direct hand crank for mechanical retraction without power requirements
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• CPC powder coat finish resists chips and rust for extended service life

Compatibility

Designed as an OEM-style storage reel for use with hose, power cord, cable, rope, wire, barbed wire, tape, chain, and other long flexible materials on stationary or mobile units.

Installation Notes

Installation is typically performed by a qualified technician using standard hand tools. Secure the A-frame base to a structurally adequate surface using the integrated mounting pattern in the steel base. Verify mounting surface load capacity before installation, as the unit weighs 48 pounds unloaded. Do not use this reel for pressurized fluid transfer, as it carries no swivel or riser.

Technical Specifications

• Frame Material: Steel
• Frame Construction: One-piece all-welded A-frame, 1/4-inch steel
• Retraction Method: Hand crank
• Disc Type: CNC robotically spun and ribbed with rolled edges
• Bearings: Permanently lubricated, self-aligning pillow block
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 48 pounds
• UPC: 674255843769

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-325-BYXX
