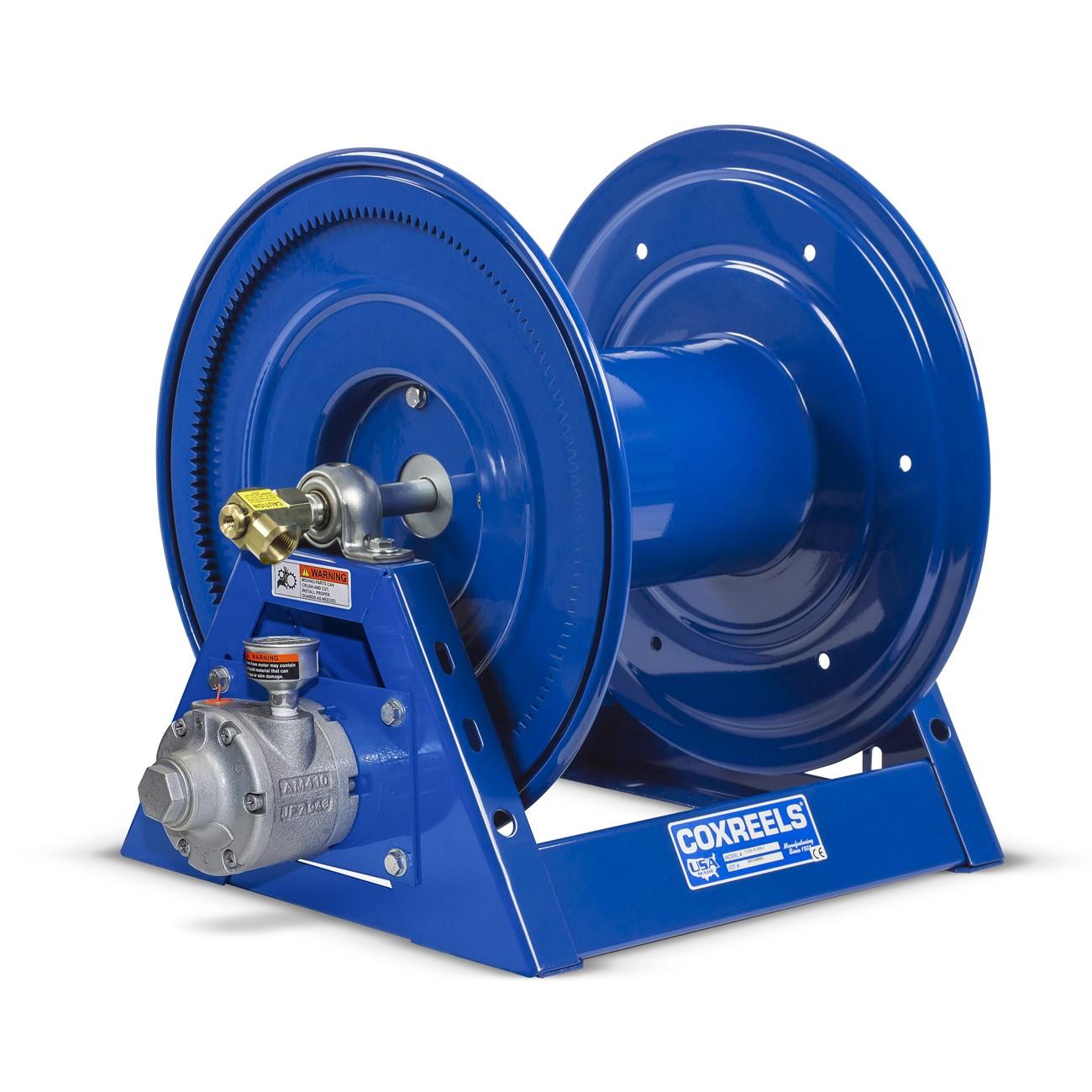

Coxreels 1125-4-100-A Hose Reel 1/2 Inch Id 100 Foot

Product Description

The COXREELS 1125-4-100-A is a heavy-duty hose reel from the 1125 Series, engineered for hand crank and motorized operation in demanding industrial and trade environments. It accommodates hose with a 1/2 inch inner diameter and 7/8 inch outer diameter at a length of 100 feet. The reel is built on a one-piece, all-welded 12-gauge steel A-frame base and features a low-profile outlet riser with an open drum slot design that delivers a flat, non-crimping hose wrap. Maintenance techs, plant service professionals, and industrial contractors rely on this reel for durable, high-cycle service where hose integrity and smooth operation are critical.

The 1125-4-100-A suits a wide range of industrial, maintenance, and trade applications where a managed 100-foot hose run is needed. Typical installations include shop air lines, fluid transfer stations, wash-down bays, and facility maintenance carts. The motorized option adds an aluminum body 4-vane air motor for hands-free retraction. This reel is sold as a single unit and is suitable for both permanent wall or floor mounting and semi-permanent setups requiring quick detachment.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base provides rigid, bolt-free structure with integrated mounting pattern for straightforward installation and removal
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose swaps without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges increase disc strength, protect hose edges, and improve operator safety
• Low-profile outlet riser and open drum slot design ensures flat, smooth hose wrap with no crimping across the 100-foot hose capacity
• Permanently lubricated, self-aligning pillow block bearings deliver smooth rotation and long service life with no field greasing required
• CPC powder coat finish resists chips and rust for long-term appearance and corrosion protection in harsh service environments

Compatibility

Designed as an OEM-style replacement or direct-install hose reel for applications requiring 1/2 inch ID hose management at up to 100 feet; consult COXREELS application data for specific hose and media compatibility.

Installation Notes

Installation is typically performed by maintenance mechanics or industrial service technicians. Mount the reel to a structurally sound surface using the integrated base mounting pattern, following fastener load ratings appropriate for the reel weight and hose tension. For motorized configurations, connect the air motor supply line to a regulated, clean-air source before operation. Depressurize and drain the hose fully before performing any maintenance on swivel seals or bearings.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 100 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, NPT full-flow
• Motor Type: Aluminum body, 4-vane air motor (motorized config)
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 44 pounds
• UPC: 674255822474

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-100-A
