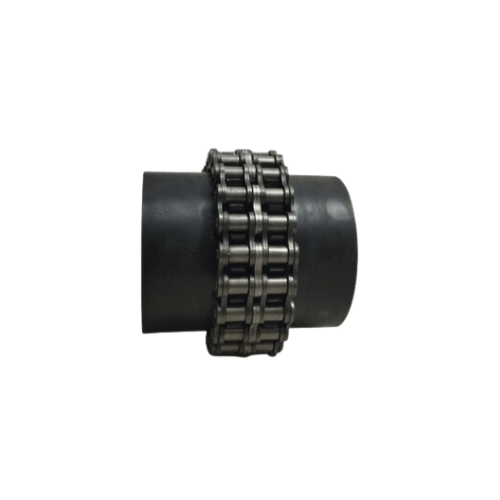

COUPLINGS COMPANY 1018 Chain Coupling

Product Description

The COUPLINGS COMPANY 1018 is a chain coupling made for torque transmission in industrial applications. The product is made from hardened steel and features a blackodised surface treatment. It includes a hardened steel chain as a spare component. This coupling accommodates shaft applications in both horizontal and vertical arrangements.

• Enables torque transfer between shafts.
• Facilitates use in both horizontal and vertical shaft setups.
• Offers a variety of sizes for diverse applications.

Product Highlights

This coupling is built to handle shock loads and vibration while requiring minimal lubrication during operation. It supports a minimum bore of sixteen millimeters and a maximum bore of forty-eight millimeters.

Product Information

Standard Information

• MPN: 1018
• Brand: COUPLINGS COMPANY

Technical Specifications

• Weight: 4 kg
• Surface Treatment: Blackodised
• Coupling Material: Hardened Steel
• Spare Material: Hardened Steel Chain
• Min Bore: 16 mm
• Max Bore: 48 mm
• T Measurement: 98 mm
• t Measurement: 45 mm
• W Measurement: 8 mm
• C Measurement: 71 mm
• D Measurement: 106 mm
