Cornelius 620045909 Motor Mounting Bracket ED2XX

Product Description

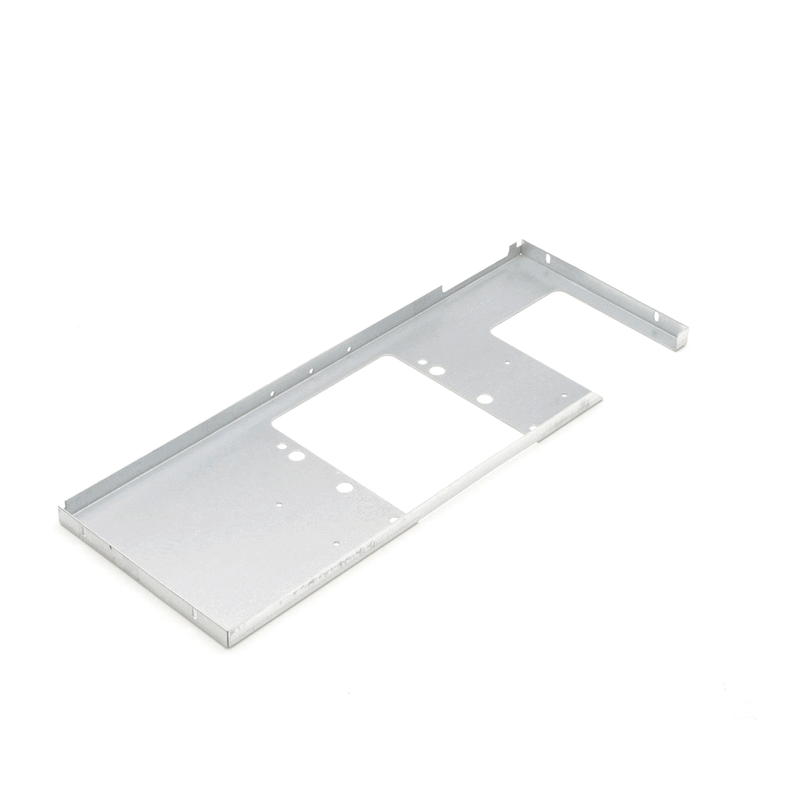

The CORNELIUS 620045909 is a motor mounting bracket designed for use in Cornelius ED2XX series hi-carb commercial beverage dispensing equipment. This bracket secures the drive motor in place within the dispenser assembly, maintaining proper alignment and reducing vibration during operation. It is a direct OEM-replacement structural component intended for installation by qualified commercial appliance service technicians. Its design matches original factory specifications for the ED2XX hi-carb platform, making it a reliable option when the original bracket is damaged, corroded, or missing.

This mounting bracket is applicable to Cornelius ED2XX hi-carb series commercial beverage dispensers, typically found in foodservice and convenience store environments. The hi-carb designation indicates use in high-carbonation dispensing systems where precise motor positioning is critical to consistent product delivery. Service technicians performing motor replacements or dispenser rebuilds on ED2XX hi-carb units will require this bracket to complete a proper installation.

Key Features

• OEM-replacement motor mounting bracket for Cornelius ED2XX hi-carb dispensers
• Secures drive motor and maintains alignment within the dispenser assembly
• Designed to match original factory fitment for ED2XX hi-carb series equipment
• Supports proper motor operation by minimizing movement and vibration

Compatibility

Designed as an OEM-style replacement motor mounting bracket for Cornelius ED2XX hi-carb series commercial beverage dispensing equipment.

Installation Notes

Installation should be performed by a qualified commercial appliance or beverage equipment service technician. Disconnect and lock out all electrical power to the dispenser before removing or installing any internal components. Ensure the motor is fully seated and all fasteners are secured before restoring power. Follow applicable local codes and the manufacturer's service documentation for the ED2XX platform.

Technical Specifications

• Application: ED2XX Hi-Carb Motor Mounting
• Component Type: Mounting Bracket

Standard Information

• Brand: CORNELIUS
• Manufacturer Part Number: 620045909
