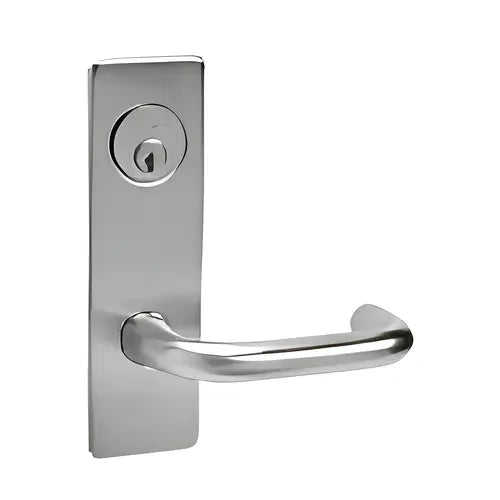

Corbin Russwin ML2065 LWM 626 LC Mortise Dormitory Lever Lock

Brand: CORBIN RUSSWIN
SKU: ML2065 LWM 626 LC
Availability: In Stock

Ships same day if ordered by 12 pm
$745.20
$745.20
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Corbin Russwin ML2065 LWM 626 LC is a dormitory or entrance mortise lock from the ML2000 series designed for commercial and institutional doors. It is an ANSI/BHMA Grade 1 mortise lock, BAA qualified and 3-hour fire rated, with a field reversible handing and a 10-year limited warranty. The lock features a heavy-gauge steel lockcase, a quick reversible latchbolt and a one-inch stainless steel deadbolt suitable for high-traffic installations.

  • ANSI/BHMA Grade 1, BAA qualified, UL listed and 3-hour fire rated for institutional and commercial use
  • Mechanical features include quick reversible latchbolt, 3/4" latch throw, 1" stainless steel deadbolt and heavy-gauge steel lockcase
  • Backset 2-3/4", standard door thickness 1-3/4", field reversible handing and supplied less cylinder

Product Highlights

Grade 1 ML2000 series mortise lock for dormitory or entrance applications; 3-hour fire rated; field reversible handing; 10-year limited warranty.

Product Information

Standard Information

  • Brand: CORBIN RUSSWIN
  • Manufacturer Part Number: ML2065 LWM 626 LC
  • Country of Origin: USA
Technical Specifications
Brand
Corbin Russwin
Model / MPN
ML2065 LWM 626 LC
Series
ML2000 Series
Product Type
Mortise Lock / Mortise Lever Lock
Function
65 - Dormitory or Entrance
Grade
ANSI/BHMA Grade 1
Standards
ANSI/BHMA A156.13 Series 1000; A117.1 Accessibility Code; UL listed
BAA Qualified
Yes
Fire Rating
3 Hours
Base Material
Brass or Bronze
Front Material
Steel
Case Material
Heavy-gauge steel
Lockcase Dimensions
5-7/8" x 4" x 15/16"
Backset
2-3/4 Inch
Door Thickness
1-3/4 Inch (standard)
Latch Throw
3/4 Inch
Latchbolt Size
5/8" x 1"
Latchbolt Type
2-Piece mechanical with anti-friction insert
Deadbolt Throw
1 Inch
Deadbolt Type
One-piece stainless steel, 1" throw
Cylinder Type
Less Cylinder
Lever Style
LW (Lustra) straight return tubular lever
Escutcheon Trim
M wrought escutcheon
Handing
Field reversible; quick reversible without disassembling lock case
ADA Compliant
Yes
UL Listed
Yes
Application
Offices, schools, hospitals, hotels, commercial and institutional doors
Finish Description
Satin Chrome
Finish Code
626/US26D
Manufacturer Parent
Assa Abloy
Country Of Origin
USA
Product Projection
2-1/2 Inch
Front Size
8" x 1-1/4" x 3/32"
Strike Size
4-7/8" x 1-1/4"
Hub Size
5/16 Inch
Hub Material
Steel
Knob/Lever Size
5-1/8 Inch
Lockcase Front Material / Armored Front
Wrought brass, bronze or stainless steel attached by machine screws
