Corbin Russwin ML2010 NSM 626 Passage or Closet Mortise Lock (Each)

Brand: CORBIN RUSSWIN
SKU: ML2010 NSM 626
Availability: In Stock

Ships same day if ordered by 12 pm
$763.08
$763.08
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

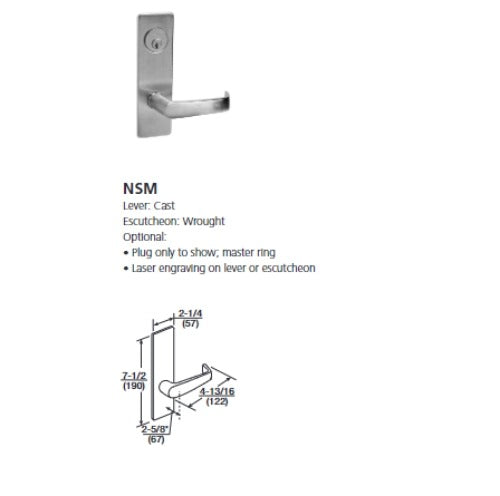

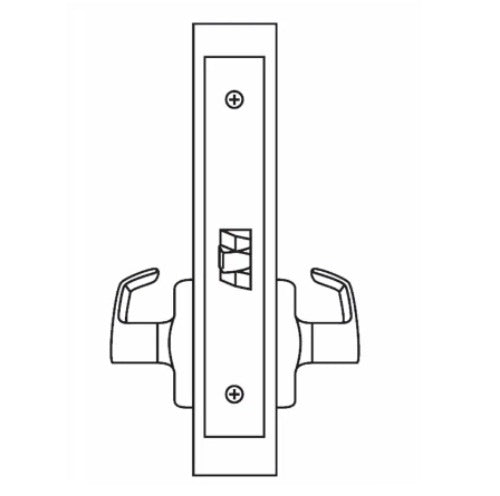

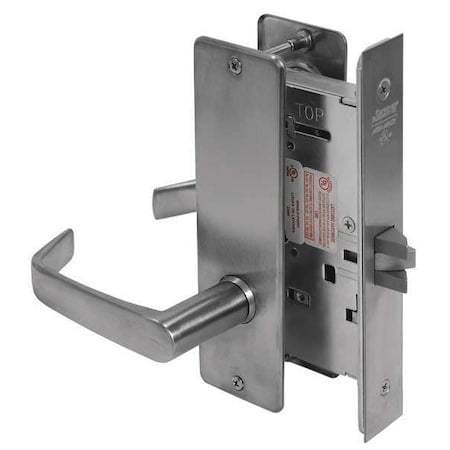

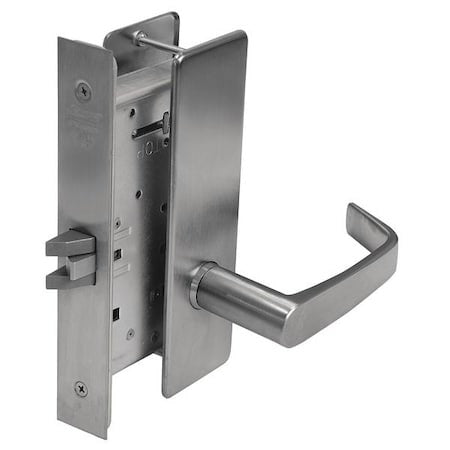

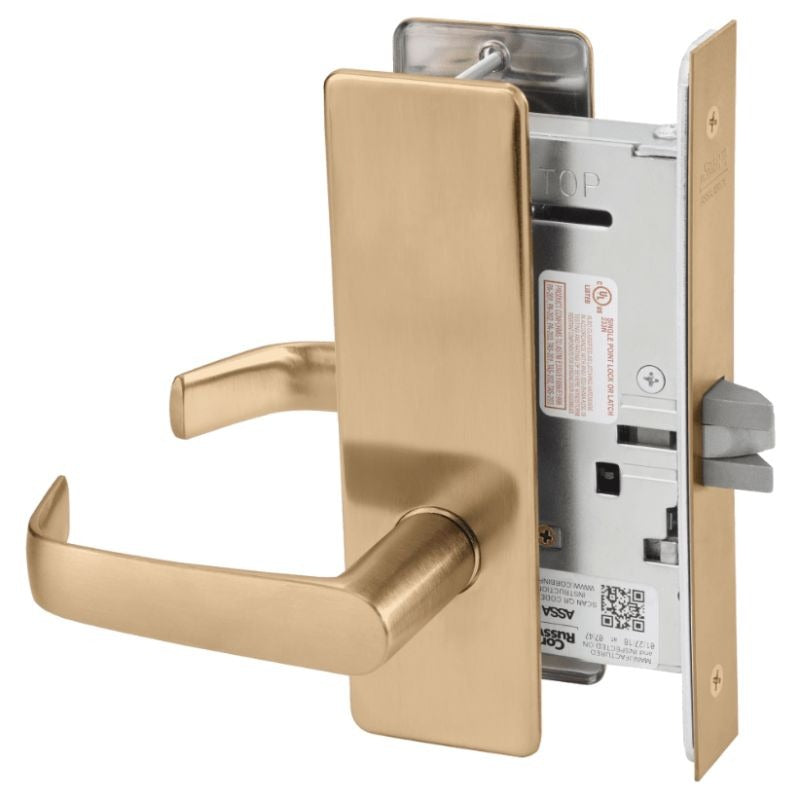

Corbin Russwin ML2010 NSM 626 is a passage (closet) mortise lockset configured with the Newport (NS) lever and M escutcheon. The Grade 1 ML2000-series lockbody provides a nonlocking passage function where both levers operate the latchbolt; standard backset is 2-3/4 inches and standard door thickness is 1-3/4 inches (range 1-3/8 to 4 inches). The lock features a heavy-gauge steel case, quick reversible handing, and UL10C 3-hour fire listing.

  • Passage (ANSI F01) function: nonlocking levers with latchbolt operated from either side
  • Grade 1 ML2000 mortise lockbody; standard backset 2-3/4 in; door thickness 1-3/4 in (1-3/8 to 4 in range)
  • Heavy-gauge chrome plated steel case with quick reversible handing; UL10C 3-hour and ANSI A156.13 Series 1000 certifications

Product Highlights

Grade 1 passage mortise lock with NS lever and M escutcheon, 2-3/4 in backset, UL10C 3-hour fire rating, quick reversible handing

Product Information

Standard Information

  • Brand: CORBIN RUSSWIN
  • Manufacturer Part Number: ML2010 NSM 626
  • Country of Origin: United States
Technical Specifications
Brand
Corbin Russwin
Manufacturer Part Number
ML2010 NSM 626
Model
ML2010NSM
Series
ML2000
Function
Passage (ANSI F01) - Passage or Closet
Grade
1
Finish
Satin Chrome
Lever Design
NS (Newport)
Escutcheon
M escutcheon
Backset
2-3/4 in (70 mm)
Door Thickness
Standard 1-3/4 in (44 mm); range 1-3/8 in to 4 in
Lockcase Material
Heavy-gauge chrome plated steel
Trim Base Material
Brass
Latchbolt
2-piece mechanical with anti-friction insert; 3/4 in throw (dimensions 5/8 in x 1 in)
Auxiliary Latchbolt
9/16 in effective throw; 3/8 in effective auxiliary latch deadlocking
Deadbolt (if used)
One-piece stainless steel; 19/32 in x 1-1/4 in; 1 in throw
Handing
Quick reversible in the field (field reversible)
Fire Rating
UL10C 3-hour
Standards / Certifications
ANSI/BHMA A156.13 Series 1000 Grade 1; UL10C; ULC Listed; CAL FIRE approved; ASTM E330; FF-H-106C; Buy American Act qualified
Strike
ANSI straight lip standard; 4-7/8 in x 1-1/4 in (ASA)
Front Plate Size
8 in x 1-1/4 in
Accepts Functions
Accepts all 63 ML2000 functions
Application / Location Type
Commercial, institutional, healthcare, schools, offices, hospitals
Country of Origin
United States
