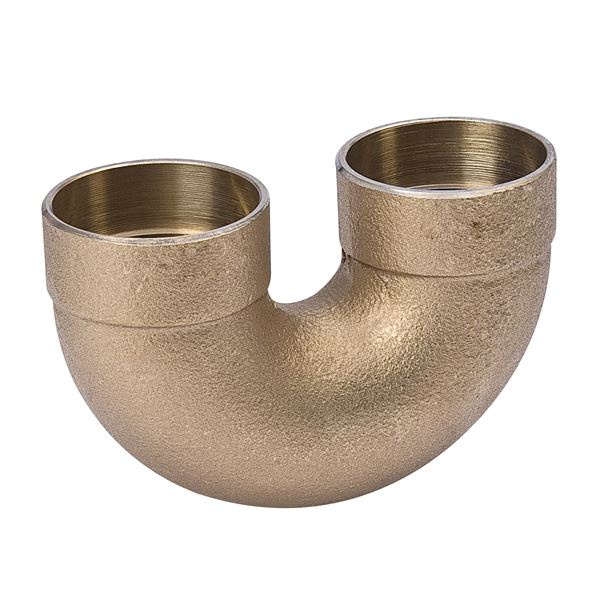

Copper Fitting A07690 Return Bends

Product Description

The COPPER FITTING A07690 Return Bends are designed for use in non-pressurized sanitary systems. These solder-joint fittings are available in both wrot copper and cast bronze materials. They feature shorter solder cup designs and sweeping turns, meeting ASME standards B16.23 and B16.29. Constructed of high-grade copper or bronze materials.

• For use in non-pressurized drain, waste and vent sanitary systems
• Constructed of high-grade copper or bronze materials
• Made to applicable ASME standards B16.23, B16.29

Product Highlights

Ideal for plumbing, air conditioning, and central medical gas pipeline systems, these fittings ensure a perfect finish and prevent unpleasant gases from escaping.

Product Information

Standard Information

• Brand: COPPER FITTING
• Manufacturer Part Number: A07690

Technical Specifications

• Material: CAST BRASS ALLOY
• End Type: C - Cup (Female Solder)
• End Size: 2 in
• Second End Type: C - Cup (Female Solder)
• Second End Size: 2 in
• Standards: ASME B16.23, ASME B16.29
• Overall Length: 5.30 in
• Overall Height: 3.20 in
• Overall Width: 2.30 in
• Style: D-782
• Qty Pcs / Bag: 1
• Master Qty Pcs / Box: 25
• Application Type: DWV
• Domestic/Import: Domestic
• End Style: Sweat
• Fitting/Connector Type: 180 deg Bend
• Nominal Size: 2 In
