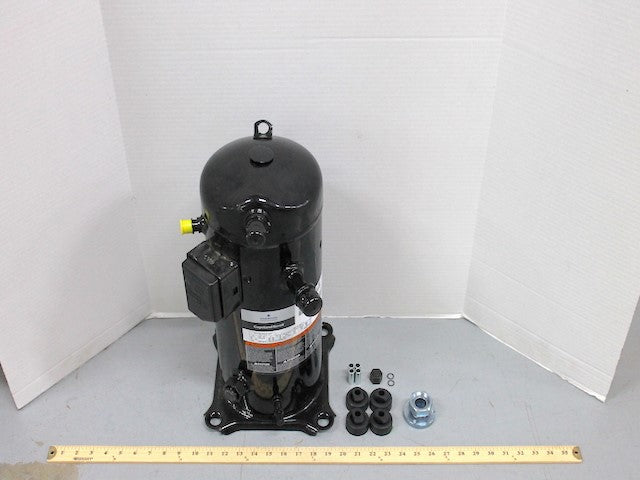

Copeland ZS38K4E-TFD-950 Scroll Compressor

Product Description

The Copeland ZS38K4E-TFD-950 is a scroll compressor made for refrigeration and air conditioning systems. This compressor works with several refrigerants like R134a, R22, and R404A. It operates on three-phase power and is designed for medium temperature applications.

• Compatible with multiple refrigerants including R134a, R404A, and R407A.
• Designed for 208-240/3 or 460 VAC three-phase systems.
• Utilizes sweat connections for easy installation.

Product Highlights

This compressor provides reliable performance for both medium and extended temperature applications, suitable for various commercial refrigerating systems.

Product Information

Standard Information

• Brand: Copeland
• Manufacturer Part Number: ZS38K4E-TFD-950

Technical Specifications

• Application: Ext. Medium Temp, High Temp, Medium Temp
• Refrigerant Types: R134a, R22, R404A, R407A, R407C, R448A, R449A, R507
• Voltage: 460 VAC
• Phase: 3
• Oil Type: Polyol Ester
• Oil Recharge: 60 Oz.
• Rated Load Amps: 21.4
• Height: 17.23 inches
• Weight: 83 lbs.
• Discharge Connection Size: 1/2 inch
• Suction Connection Size: 7/8 inch
• Mounting Dimensions: 7.50 x 7.50 inches
• Cycle/Hertz: 50/60 Hz
• Evaporating Temperature: 45°F (7.22°C)
• Length: 9.67 inches
• Locked Rotor Amps (LRA): 62
• Mass Flow: 535 lbs/hr
• Return Gas Temperature: 65°F (18.33°C)
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 7/8 inch
• Width: 10.13 inches
• HP/Ton: 5
• BTU Output: 19,800
