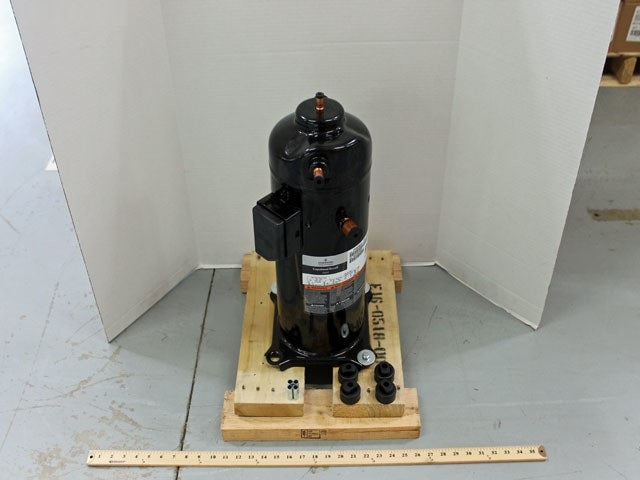

Copeland ZPD83KCETF5 Digital Scroll Compressor 82500 Btu

Product Description

The COPELAND ZPD83KCETF5 is a digital scroll compressor rated at 82,500 BTU/h and 7 horsepower, designed for commercial and light-commercial HVAC applications using R-410A refrigerant. It operates on a 200-230 volt, 3-phase power supply, making it suited for split systems and packaged units in commercial settings. Digital scroll technology allows the compressor to modulate capacity rather than cycle on and off, which improves temperature control, reduces wear, and lowers energy consumption compared to fixed-capacity scroll designs. Licensed HVAC technicians and refrigeration mechanics are the primary installers of this component.

This compressor is applied in commercial split systems, rooftop units, and custom refrigeration and air conditioning assemblies where variable capacity control is required. The 3-phase electrical configuration targets commercial buildings, light industrial facilities, and multi-zone systems where load variability benefits from digital modulation. At 82,500 BTU/h, this unit is sized for medium to large commercial cooling loads. R-410A refrigerant compliance positions it for systems designed before current low-GWP refrigerant transitions.

Key Features

• Digital scroll technology provides variable capacity modulation for precise temperature and load control
• 82,500 BTU/h cooling capacity suits medium to large commercial system designs
• 200-230 volt, 3-phase input compatible with commercial electrical infrastructure
• R-410A refrigerant rated for compatibility with current HFC-based system designs
• 7 HP displacement class supports high-capacity single-compressor configurations

Compatibility

Designed as an OEM-style replacement or new-installation digital scroll compressor for commercial R-410A air conditioning and refrigeration systems requiring a 3-phase, 200-230 volt, 82,500 BTU/h capacity compressor.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician. Recover all refrigerant and de-energize the system fully before removing the existing compressor. Follow the compressor manufacturer wiring diagram and observe all applicable electrical code requirements for 3-phase equipment connections. Do not operate the compressor outside its specified voltage range or without proper refrigerant charge and lubrication.

Technical Specifications

• Cooling Capacity: 82,500 BTU/h
• Horsepower: 7 HP
• Voltage: 200-230 volts
• Phase: 3-Phase
• Refrigerant: R-410A
• Compressor Type: Digital Scroll

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZPD83KCETF5
