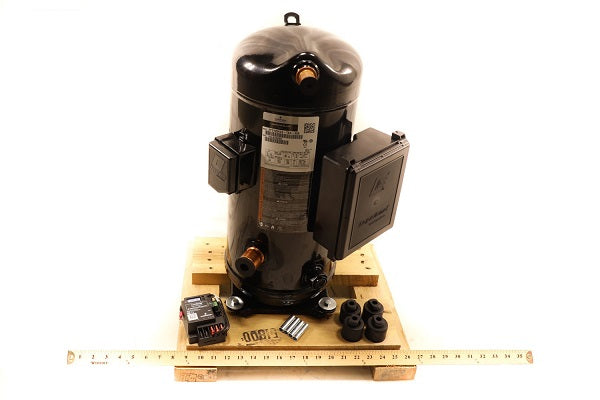

Copeland ZPD42K5ETF5 Digital Scroll Compressor 43000 Btu/h

Product Description

The COPELAND ZPD42K5ETF5 is a digital scroll compressor rated at 43,000 BTU/h and 3.5 horsepower, designed for commercial and residential refrigeration and air conditioning systems operating on R-410A refrigerant. It runs on a 200-230V, three-phase power supply, making it suited for light commercial split systems and packaged equipment where variable capacity control is required. Digital scroll technology modulates capacity by alternating between loaded and unloaded states, improving part-load efficiency and reducing energy consumption compared to fixed-scroll designs. Licensed HVAC technicians handle installation and commissioning of this compressor.

The ZPD42K5ETF5 is applied in commercial cooling systems where demand varies significantly across operating hours. Digital scroll compressors are commonly installed in variable-capacity rooftop units, precision cooling equipment, and split-system condensing units. The three-phase electrical configuration suits commercial building applications and light industrial environments where three-phase power is available at the equipment disconnect. This compressor is not intended for single-phase residential equipment.

Key Features

• Digital scroll modulation provides variable capacity output for improved part-load efficiency
• Rated at 43,000 BTU/h cooling capacity to handle medium-tonnage commercial loads
• 3.5 HP motor operating on 200-230V three-phase power supply
• R-410A refrigerant compatibility aligns with current low-ozone-potential system requirements
• Scroll compressor design reduces vibration and mechanical wear compared to reciprocating alternatives

Compatibility

Designed as an OEM-style replacement or new-installation digital scroll compressor for three-phase R-410A commercial air conditioning and refrigeration systems rated near 3.5 HP and 43,000 BTU/h.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling R-410A refrigerant. Disconnect and lock out all electrical power and relieve system pressure before removing the existing compressor. Verify oil type and charge quantity are appropriate for the ZPD42K5ETF5 before commissioning. Follow the equipment manufacturer's wiring diagram and all applicable local mechanical and electrical codes during installation.

Technical Specifications

• Cooling Capacity: 43,000 BTU/h
• Horsepower: 3.5 HP
• Voltage: 200-230V
• Phase: 3-Phase
• Refrigerant: R-410A
• Compressor Type: Digital Scroll

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZPD42K5ETF5
