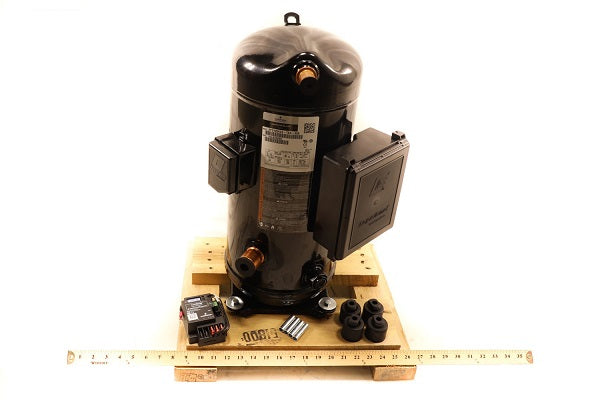

Copeland ZPD137KCETF5 Digital Scroll Compressor R410A

Product Description

The COPELAND ZPD137KCETF5 is a digital scroll compressor designed for commercial and light-commercial refrigeration and air conditioning applications. Rated at 137,500 BTU/h and 11.5 HP, it operates on 200-230 volts, 3-phase power and is engineered for use with R410A refrigerant. Digital scroll technology allows variable capacity operation by modulating between loaded and unloaded states, giving the system tighter temperature and humidity control compared to fixed-scroll alternatives. Licensed HVAC technicians and refrigeration mechanics are the primary installers of this class of compressor.

The ZPD137KCETF5 is suited for commercial rooftop units, split systems, and close-control precision cooling equipment where variable capacity output is required. The 3-phase electrical configuration and high BTU/h rating make it appropriate for larger tonnage commercial installations rather than residential single-phase systems. Wherever precise load matching and reduced cycling are system priorities, digital scroll technology in this capacity range is a standard specification choice.

Key Features

• Digital scroll modulation allows variable capacity output for precise temperature and humidity control
• 137,500 BTU/h cooling capacity at 11.5 HP rating
• Rated for 200-230V, 3-phase power supply
• Designed for R410A refrigerant systems
• Scroll compressor design reduces vibration and improves efficiency over reciprocating alternatives

Compatibility

Designed as an OEM-style replacement or new-installation compressor for commercial R410A scroll-based refrigeration and air conditioning systems requiring 3-phase power in the 137,500 BTU/h capacity range.

Installation Notes

Installation must be performed by a licensed HVAC or refrigeration technician holding an EPA Section 608 certification for handling R410A refrigerant. Disconnect and lock out all electrical power before beginning compressor replacement or installation. Follow applicable local mechanical codes and the equipment manufacturer service documentation for oil charge, refrigerant charge, and electrical connection procedures. Never operate the compressor outside its rated voltage range or without confirming proper refrigerant type and system pressure limits.

Technical Specifications

• Cooling Capacity: 137,500 BTU/h
• Horsepower: 11.5 HP
• Voltage: 200-230 volts
• Phase: 3-phase
• Refrigerant: R410A
• Compressor Type: Digital Scroll

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZPD137KCETF5
