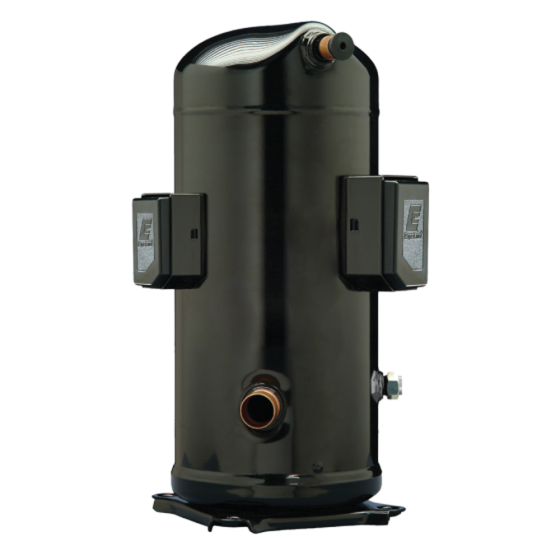

Copeland ZPD104KCE-TF5-950 OEM Replacement Compressor

Product Description

The Copeland ZPD104KCE-TF5-950 is an OEM replacement digital scroll compressor designed for use with R-410A refrigerant. This compressor operates efficiently at voltages of two hundred to two hundred thirty VAC, across fifty or sixty Hertz with three-phase power. It provides a BTU output of one hundred four thousand and includes internal inherent protection to ensure reliable performance.

• Compatible with R-410A refrigerant.
• Operating voltage range: 200-220/200-230 VAC.
• Internal protection for enhanced durability.

Product Highlights

This hermetic compressor is suitable for various HVAC applications, ensuring effective cooling with sturdy construction.

Product Information

Standard Information

• Brand: Copeland
• MPN: ZPD104KCE-TF5-950

Technical Specifications

• Amps: 21.25-26.8
• BTU Output: 104000
• Compressor Housing: Hermetic
• Compressor Type: Scroll
• Cycle/Hertz: 50/60 Hz
• Discharge Connection Type: Stub
• Height: 24.3 inches
• Length: 10.61 inches
• Locked Rotor Amps (LRA): 240
• Mass Flow: 1550 to 1600 lbs/hr
• Mounting Dimensions: 7.5 inches x 7.5 inches x 24.59 inches
• Oil Charge Initial: 85 oz.
• Oil Type: Polyolester (POE)
• OPT Code: ZPD104KCETF5950
• Phase: Three
• Protection: Internal Inherent Protection
• Refrigerant: R-410A
• Sound Level: 77-82 dBA
• Suction Line Fitting Type: Stub
• Suction Line Size: 1 1/8 inches
• UL Listed: Yes
• Voltage: 200-220/200-230 VAC
• Width: 10.32 inches
• Ratings: ASRAE ARI
• Country of Origin: CHN
