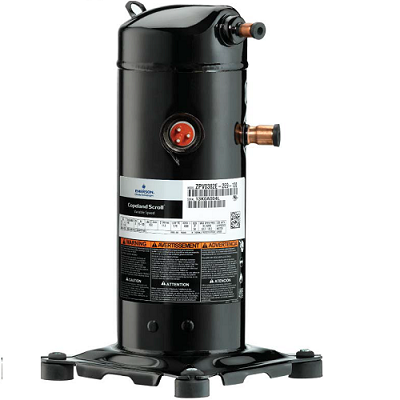

Copeland ZP385KCE-TED-966 Scroll Compressor 385000 BTU R410A 460/3/60

Product Description

The Copeland ZP385KCE-TED-966 is a scroll compressor tailored for air conditioning systems. This unit operates with R410A refrigerant and has a cooling capacity of three hundred eighty-five thousand BTUH. It is equipped with rotalock connections and requires an external capacitor. With built-in axial and radial compliance, the compressor guards against liquid damage, making it a dependable choice for high-efficiency cooling applications.

• Designed for air conditioning applications.
• Utilizes R410A refrigerant for optimal performance.
• Features rotalock connections for easy installation.

Product Highlights

This compressor is ideal for systems that demand an effective and reliable compression solution.

Product Information

Standard Information

• Brand: Copeland
• Vendor Part Number: ZP385KCE-TED-966

Technical Specifications

• Application: A/C
• Refrigerant: R410A
• Capacity (BTUH): 385000
• Horsepower: 32
• Voltage: 460/3 VAC
• Compressor Type: Scroll
• Oil Type: Polyolester (POE)
• Oil Recharge (Oz.): 203
• Rated Load Amps: 60.7
• Displacement (CFH): 2590.98
• Connection Discharge (In.): 1 3/8 ST
• Connection Suction (In.): 1 5/8 ST
• Mount (In.): 10.5 x 10.5
• Length (In.): 15.40
• Width (In.): 17.60
• Height (In.): 28.10
• Weight: 390
• Phase: Three
• Cycle/Hertz: 50/60 Hz
• Evaporating Temperature: 45°F (7.22°C)
• Condensing Temperature: 130°F (54.44°C)
• Displacement: 21.32 (in^3/Rev)
• Suction Line Size (OD): 1 5/8
• Discharge Connection Size (OD): 1 3/8
• Approvals: UL Recognized
• Oil Charge Initial (oz.): 213
• Mounting Dimensions: 10.50 x 10.50 x 28.90
• Locked Rotor Amps (LRA): 310
• Sound Level (dBA): 89-94
