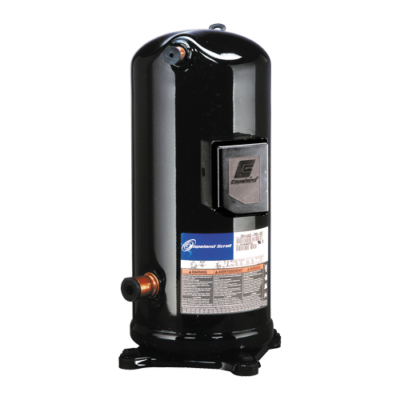

Copeland ZP24K5ETF5 scroll compressor 24000 BTU 200/230V

Product Description

The COPELAND ZP24K5ETF5 Scroll Compressor is engineered for air conditioning applications, operating efficiently with HFC R-410A refrigerant. This 3-phase unit delivers 24000 BTU/hr capacity at 200/230V, making it suitable for various HVAC systems. Its robust design ensures consistent performance and energy efficiency for residential and commercial cooling needs.

• Scroll compressor technology
• Compatible with HFC, R-410A refrigerant
• Designed for Air Conditioning applications

Product Highlights

Optimized for air conditioning, this 3-phase scroll compressor offers reliable cooling with R-410A refrigerant.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP24K5ETF5

Technical Specifications

• Model: ZP24K5E-TF5
• Refrigerant Type: HFC, R-410A
• Application: Air Conditioning
• Frequency: 60 Hz
• Phase: 3-phase
• Voltage: 200/230 V
• Performance: Evaporator Temp (F): 45, 50
• Performance: Condensing Temp (F): 130, 100
• Performance: Return Gas Temp (F): 65, 70
• Performance: Liquid Temp (F): 115, 85
• Capacity (Btu/hr): 24000
• Performance: Power (W): 2420, 1570
• Performance: EER (Btu/Wh): 9.90, 20.90
• Performance: Mass Flow (Ibs/hr): 353, 403
• Performance: Current (Amps): 7.30, 5.40
• Sound Power (dBA): 69 Avg, 74 Max
• Vibration (mils(peak-peak)): 2.0 Avg, 3.0 Max
• Mechanical: Displacement (in^3/Rev): 1.39
• Mechanical: Displacement (ft^3/hr): 168.92
• Mechanical: Overall Length (in): 9.56
• Mechanical: Overall Width (in): 9.56
• Mechanical: Overall Height (in): 15.27
• Mechanical: Mounting Length (in): 7.50
• Mechanical: Mounting Width (in): 7.50
• Mechanical: Mounting Height (in): 16.02
• Mechanical: Suction Size (in) Type: 3/4 Stub
• Mechanical: Discharge Size (in) Type: 1/2 Stub
• Mechanical: Initial Oil Charge (oz): 25
• Mechanical: Oil Recharge (oz): 21
• Mechanical: Internal Free Volume (in^3): 129.6
• LRA (Amp): 58.0
• Electrical: MCC (Amps): 13.0
• Electrical: Max Operating Current (Amp): 9.5
• Electrical: RLA (for contactor selection) (Amp): 9.3
• Electrical: RLA (for breaker & wire size selection) (Amp): 8.3
• Electrical: RPM: 3500
• Electrical: UL File No: SA-2337
• Alternate Application: Refrigerant: R-410A HFC
• Alternate Application: Voltage: 200/220
• Alternate Application: Phase: 3
• Alternate Application: Frequency (Hz): 50
• Alternate Application: Type: Air Conditioning
• Horsepower (HP): 2 HP
