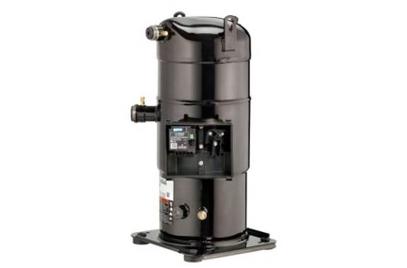

Copeland ZP236KCE-TED-966 Scroll Compressor

Product Description

The Copeland ZP236KCE-TED-966 is a hermetic scroll compressor suitable for high-temperature applications. This compressor is designed to work with R-410A refrigerant and uses Polyolester (POE) oil for effective lubrication. It is ideal for air conditioning systems, ensuring efficient operation.

• Scroll compressor technology provides energy-efficient performance.
• Designed for R-410A refrigerant compatibility.
• Utilizes features to protect against liquid damage and operate quietly.

Product Highlights

This compressor operates reliably in demanding conditions, making it a vital component for high-temperature air conditioning applications.

Product Information

Standard Information

• Brand: Copeland
• Application: High Temperature, A/C

Technical Specifications

• Refrigerant: R-410A
• Voltage: 460 VAC
• Phase: Three
• Compressor Type: Scroll
• Compressor Housing: Hermetic
• Oil Type: Polyolester (POE)
• Oil Charge Initial (oz.): 152
• Displacement: 13.25 in³/Rev
• Suction Line Size (OD): 1 5/8 inches
• Discharge Connection Size (OD): 1 1/8 inches
• Evaporating Temperature: 35°F, 45°F
• Condensing Temperature: 130°F
• Liquid Temperature: 115°F
• Return Gas Temperature: 55°F, 65°F
• Rated Load Amps (RLA): 30.8, 34
• Locked Rotor Amps (LRA): 229
• Sound Level (dBA): 87-92
• Weight: 280.1 lbs
• Height: 27.34 inches
• Length: 15.08 inches
• Width: 15.38 inches
• Mounting Dimensions: 10.5 x 10.5 x 28.09 inches
• Approvals: UL Recognized
