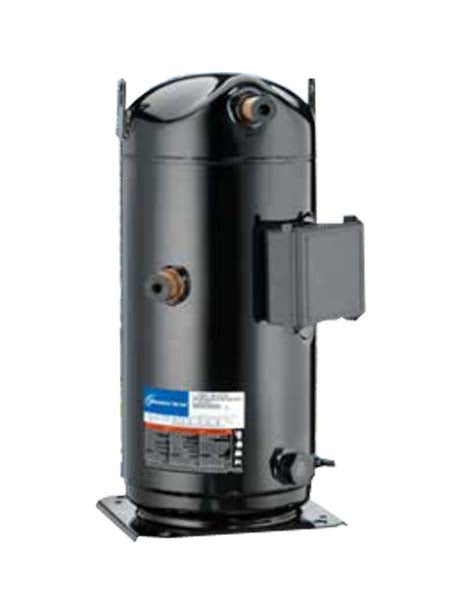

Copeland zp20k5e-pfv Scroll Compressor 20000 Btu/h

Product Description

The COPELAND zp20k5e-pfv is a single-phase scroll compressor designed for residential and light commercial air conditioning systems operating on R410A refrigerant. Rated at 20,000 BTU/h (1.7 HP) with an EER of 9.8 BTU/Wh, this compressor delivers reliable cooling capacity at 208-230 volts, 60 Hz. Input power draw is 2,040 watts with a running current of 9.1 amps. The zp20k5e-pfv is installed by licensed HVAC-R technicians as the primary vapor-compression component in split-system and packaged air conditioning equipment.

This compressor is suited for residential split systems and light commercial packaged units requiring a 20,000 BTU/h cooling capacity at 208-230V single-phase power. The R410A refrigerant circuit and scroll compression technology make it appropriate for new installations and direct compressor replacements in air conditioning applications. Net weight is approximately 47.4 pounds (21.5 kg), and the displacement rating of 19.3 cc/rev supports efficient low-noise operation with a sound pressure level of 55.0 dBA at 1 meter.

Key Features

• 20,000 BTU/h cooling capacity at 1.7 HP nominal
• EER of 9.8 BTU/Wh and COP of 2.87 W/W for efficient operation
• Designed for R410A refrigerant systems
• 208-230V, 60 Hz, single-phase electrical supply
• Low sound pressure level of 55.0 dBA at 1 meter
• Oil charge of 0.74 liters included from factory

Compatibility

Designed as an OEM-style replacement scroll compressor for single-phase R410A air conditioning systems rated at approximately 20,000 BTU/h.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC-R technician. Recover all refrigerant from the system before replacing the compressor, and evacuate to proper vacuum levels before recharging with R410A. Verify that the electrical supply matches the compressor nameplate voltage and that line-voltage disconnect and overload protection comply with NEC requirements. Confirm oil charge and refrigerant type compatibility before commissioning the system.

Technical Specifications

• Refrigerant Type: R410A
• Cooling Capacity: 20,000 BTU/h
• Nominal Horsepower: 1.7 HP
• Input Power: 2,040 watts
• EER: 9.8 BTU/Wh
• COP: 2.87 W/W
• Voltage: 208-230 volts
• Frequency: 60 Hz
• Phase: Single-phase
• Running Current: 9.1 amps
• LRA: 58.3 amps
• Displacement: 19.3 cc/rev
• Oil Quantity: 0.74 liters
• Net Weight: 47.4 pounds
• Sound Pressure Level: 55.0 dBA at 1 meter
• Application: Air Conditioning

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: zp20k5e-pfv
