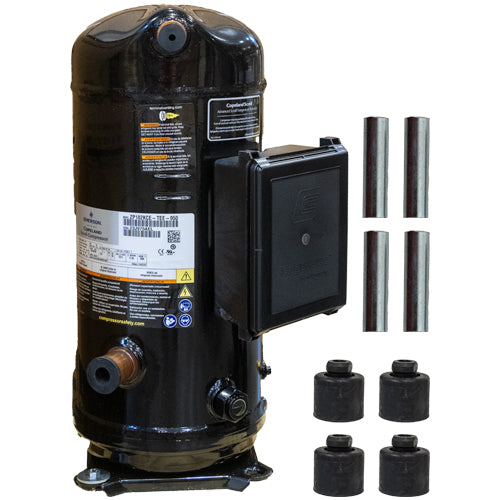

Copeland ZP182KCE-TEE-950 Scroll Compressor 182000 BTU

Product Description

The COPELAND ZP182KCE-TEE-950 is a scroll compressor designed for air conditioning applications. This compressor features high efficiency, low noise and vibration levels, and inherent motor protection. It utilizes a centrifugal oil pump and is suitable for both heat pump and air conditioning duties, using POE oil.

• High efficiency – EER 11.0 plus
• Low Noise & Vibration levels
• Inherent motor protection

Product Highlights

This Copeland scroll compressor is designed for air conditioning and heat pump applications, offering efficient and reliable performance.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP182KCE-TEE-950
• Country of Origin: Canada

Technical Specifications

• Brand: Copeland
• Capacity: 183000
• Discharge Connection: Horizontal
• Discharge ID: 7/8"
• Mounting Arrangement: A
• Refrigerant: R410A
• Refrigerant Oil Type: Polyol Ester (POE)
• Suction Connection: Horizontal
• Suction ID: 1-3/8"
• Variety Type: Scroll
• Application: AC
• Compressor Capacity: 182000 btu
• Discharge Line Height: 20.46
• Frequency: 50Hz, 60Hz
• Height: 21.7 in
• Length: 12.93 in
• LRA: 132.0
• Max RLA: 26.4
• Motor Phase: 3
• Oil Recharge: 6.875 pints
• Technology: Scroll
• Type: Herm
• Voltage: 575
• Weight: 146 lb
• Width: 11.73 in
• Hertz: 60 Hz
• RPM: 3,500
• Manufacturer: Copeland Canada
• Application Temperature: High Temperature, Air Conditioning
• Compressor Design: Scroll
• Compressor Family: Scroll Air Conditioning
• Compressor Locked Rotor Amps (High): 132.00A
• Electrical Connection Type: Terminal Block
• Initial Oil Charge (oz.): 114
• Liquid Line Size (In.): 7/8 Sweat Stub
• Maximum Continuous Current (Amps): 37.00A
• Motor Design: 3 Phase
• Motor Overload Protection: External Enhanced
• Mounting Height (In.): 23.02
• Mounting Length (In.): 7-1/2
• Mounting Width (In.): 7-1/2
• Oil or Lubricant Type: Polyolester (POE)
• Oil Recharge (oz.): 110
• R410A Capacity (Btu/Hr) @ 35 F Evaporator Temperature: 163000
• R410A Capacity (Btu/Hr) @ 45 F Evaporator Temperature: 183000
• Part #: ZP182KCE-TEE-950
• Category: Air Compressor
• Height (In.): 22.21
