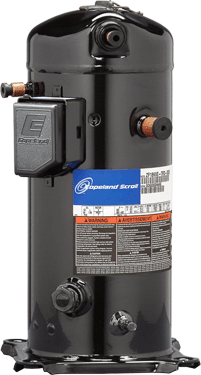

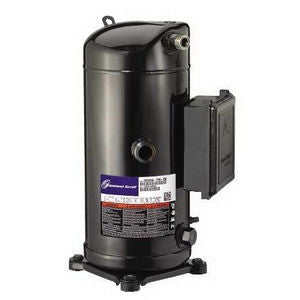

Copeland ZF18KVE-TF5-961 Compressor 6 HP 18000 BTU/hr 208/230-3 POE Oil

Product Description

The Copeland ZF18KVE-TF5-961 is a scroll compressor designed for efficient cooling applications. It delivers a cooling capacity of 29200 BTU/hr while operating on 200/230 volts and 60 Hz power supply. This model is ideal for use in low to medium temperature refrigeration systems.

• Operates on 200/230V, 60Hz power
• Delivers 29200 BTU/hr cooling capacity
• Includes unique liquid injection design for improved reliability

Product Highlights

This compressor is suited for both low and medium temperature refrigeration, featuring a robust construction for durability and efficiency.

Product Information

Standard Information

• Brand: Copeland
• MPN: ZF18KVE-TF5-961

Technical Specifications

• Cooling Capacity: 29200 BTU/hr
• Power Rating: 4950 W
• Voltage Rating: 200/230 V, 60 Hz
• Phase: Three
• Amperage Rating: 14.8 A
• Compressor Oil: POE
• Sound Level: 80 dBA
• Mounting Dimensions: 12.12 Inch L x 9.67 Inch W x 17.23 Inch H
