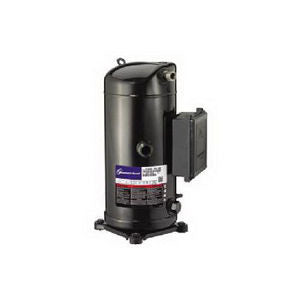

Copeland ZF13K4E-TFD-931 Low Temperature Low Condensing Scroll Compressor

Product Description

The Copeland ZF13K4E-TFD-931 is a low temperature, low condensing scroll compressor designed for efficient cooling with a maximum cooling capacity of 15400 BtuH. This model operates at a power rating of 1420 Watts and is compatible with R-404A refrigerant. It features a compact design with a mounting size of seven and a half inches by seven and a half inches by nineteen and a quarter inches.

• Cooling capacity: 15400 BtuH
• Noise level: 76 dBA
• Energy Efficiency Ratio (EER): 10.9

Product Highlights

This compressor is equipped with advanced flow control components, which enhance its reliability, reduce noise, and lower weight. Its hermetic moisture indicator ensures optimal performance by preventing contaminants.

Product Information

Standard Information

• Manufacturer: Copeland
• MPN: ZF13K4E-TFD-931

Technical Specifications

• Type: Low Temperature, Low Condensing
• Cooling Capacity: 15400 BtuH
• Voltage Rating: 380/420 V, 50 Hz, 3 Phase
• Power Rating: 1420 W
• Sound Level: 76 dBA
• EER Rating: 10.9
• Amperage Rating: 4.2 A
• Suction Line Size: 7/8 Inch Stub
• Discharge Line Size: 1/2 Inch Stub
• Compressor Oil: POE
• Dimensions: 11.16 Inch L x 9.67 Inch W x 18.5 Inch H
