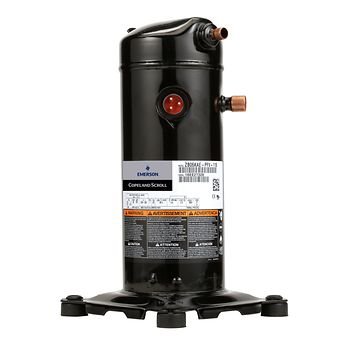

Copeland ZBD76KCE-TF5-965 Compressor 3 to 10 HP

Product Description

The COPELAND ZBD76KCE-TF5-965 is a scroll compressor designed for refrigeration applications. It supports multiple refrigerants including R-134a, R-22, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A, and R-507. With a power rating of 3 to 10 HP, this compressor is suitable for various commercial refrigeration systems. It operates within an optimal temperature range of 10 to 45 degrees Fahrenheit, ensuring efficient performance in demanding environments.

• Application: Reach-In/Walk-in Cooler, Soft Serve/FCB, Supermarket, Transportation
• Refrigerant Type: R-134a/R-22/R-404A/R-407A/R-407C/R-407F/R-448A/R-449A/R-507
• Power Rating: 3 to 10 HP

Product Highlights

This scroll compressor offers versatile refrigerant compatibility and a robust 3 to 10 HP power rating for commercial refrigeration.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZBD76KCE-TF5-965

Technical Specifications

• Brand: COPELAND
• MPN: ZBD76KCE-TF5-965
• Compressor Type: Scroll
• Refrigerant Type: R-134a/R-22/R-404A/R-407A/R-407C/R-407F/R-448A/R-449A/R-507
• Horsepower: 3 to 10 HP
• Operating Temperature Range: 10 to 45 Deg F
• Application: Reach-In/Walk-in Cooler, Soft Serve/FCB, Supermarket, Transportation
• Category: HVAC/R & Fans
• Commodity Code Description: Air Conditioner Compressors
• UNSPSC Code: 40151601
• UPC: 682688044363
• Technology: Digital
• Input Voltage: 230V
• Phase: 3
• Cooling Capacity: 76,000 BTU
• Frequency: 60 Hz
• Application Temperature: High Temperature
• Condensing Temperature: 130 / 120 °F
• Return Gas Temperature: 65 / 65 °F
• Liquid Temperature: 130 / 120 °F
• Capacity (Btu/hr): 119000 / 77500
• Power Consumption: 10900 / 9550 W
• EER: 10.9 / 8.1 Btu/Wh
• Mass Flow: 1880 / 1130 Ibs/hr
• Operating Current: 32.6 / 29.3 Amps
• Displacement (in³/Rev): 10.11
• Displacement (ft³/hr): 1228.16
• Overall Length: 11.55 in
• Overall Width: 11.23 in
• Overall Height: 21.00 in
• Mounting Length: 7.50 in
• Mounting Width: 7.50 in
• Mounting Height: 21.25 in
• Suction Line Size: 1 3/4 Rotalock
• Discharge Line Size: 1 1/4 Rotalock
• Initial Oil Charge: 110 oz
• Oil Recharge: 106 oz
• Internal Free Volume (in³): 791.0
• LRA-High: 239.0 Amp
• MCC: 58.0 Amps
• Max Operating Current: 46.9 Amp
• RLA (Contactor Selection): 41.4 Amp
• RLA (Breaker & Wire Selection): 37.2 Amp
• RPM: 3500
• Sound Power: 80 Average / 85 Max dBA
• Vibration: 3.0 Average / 4.5 Max mils(peak-peak)
