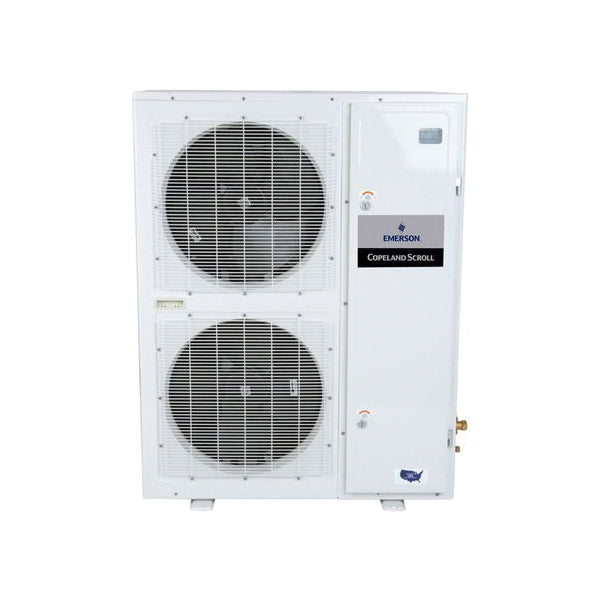

Copeland XFAM-025Z-TFC-081 condensing unit medium temp

Product Description

The Copeland XFAM-025Z-TFC-081 is a condensing unit designed for medium temperature applications. This unit provides essential features for effective operation with built-in protection against corrosion.

• Corrosion-resistant pre-painted enclosures.
• Equipped with electronic defrost control and external brass service valves.
• Features a variable speed fan and two-way Modbus communication.

Product Highlights

This condensing unit is factory tested for leaks and performance to ensure reliability. With a heated and insulated receiver and a pressure relief valve, it can handle demanding conditions.

Product Information

Standard Information

• Brand: Copeland
• MPN: XFAM-025Z-TFC-081

Technical Specifications

• Application: Medium Temp
• Chassis Size: 1 Fan
• Compressor Model: ZS19KAETF5118
• Connection Liquid: 1/2 S
• Connection Suction: 7/8 S
• Connection Type: ODS
• Horsepower: 2 1/2
• Maximum Fuse/Breaker Size: 30 Amps
• MCA: 18.2 Amps
• Oil Type: Polyol Ester
• Receiver Capacity: 9.1 Lbs (90% Full)
• Receiver Included: Yes
• Refrigerant: R22, R134a, R404A, R407A, R407C
• Voltage: 208/230-3-60
• Length: 40.59 in
• Width: 17.34 in
• Height: 33.03 in
• Shipping Weight: 245.00 Lbs
