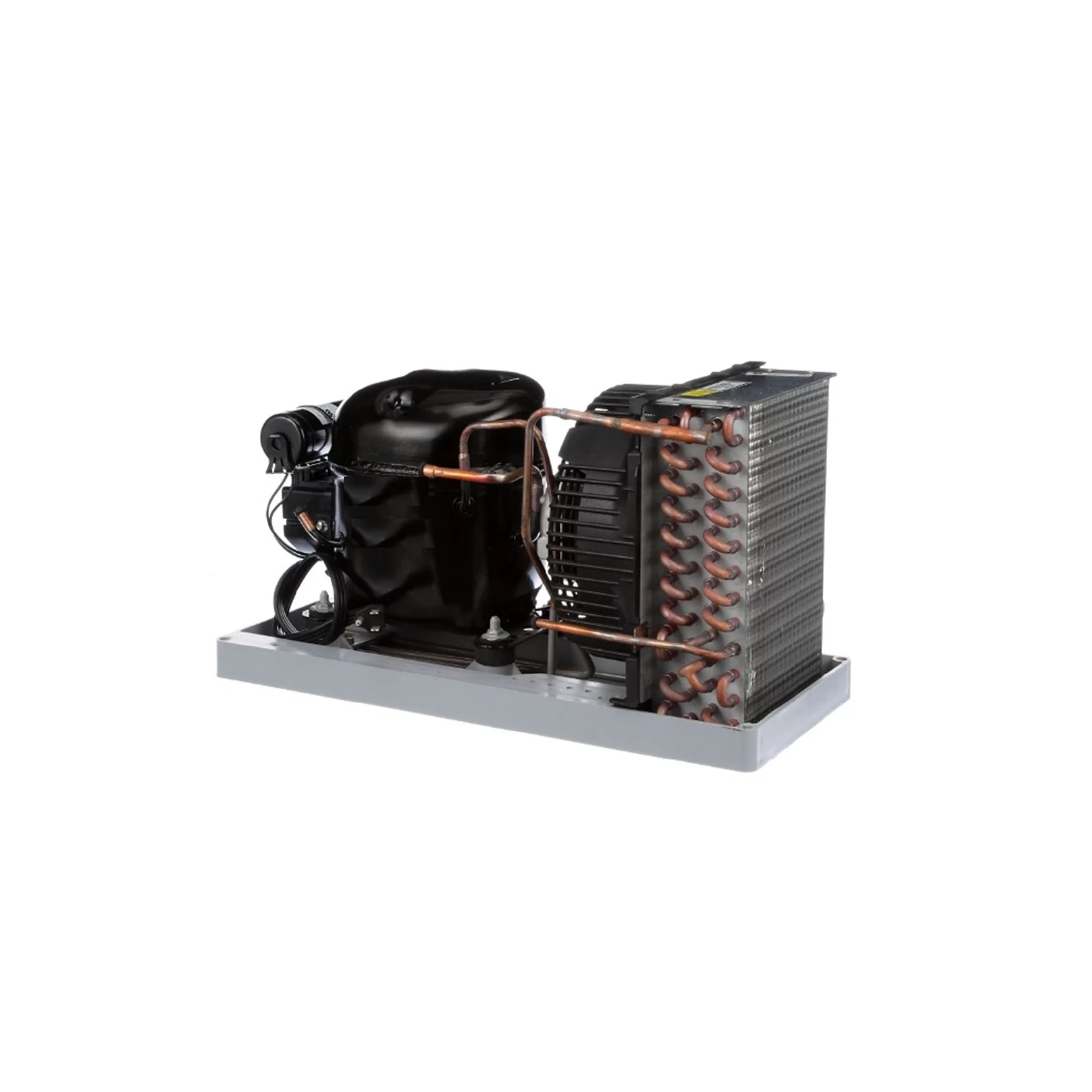

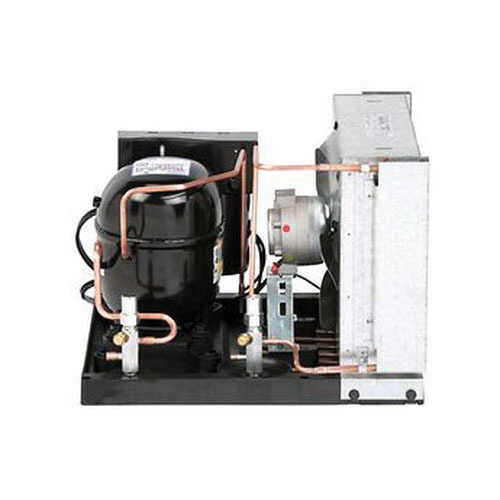

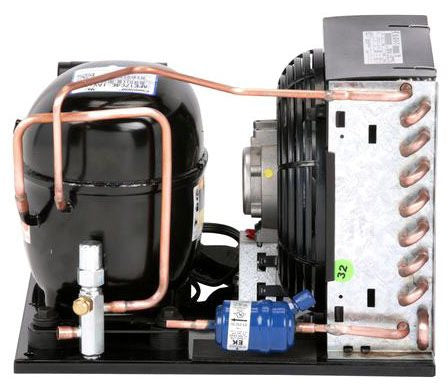

Copeland M6GP-H064-CAV-177 Refrigeration Condensing Unit 1/2 HP

Product Description

The COPELAND M6GP-H064-CAV-177 is an air-cooled hermetic condensing unit designed for high, medium, and low-temperature refrigeration applications. It features hermetic reciprocating compressor technology and is suitable for use with R-404A, R-407C, R-448A, and R-449A refrigerants. The unit operates at 208-230 VAC and 60 Hz.

• Air-cooled steel base for indoor condenser location.
• Equipped with a CSCR condenser motor.
• Suitable for commercial applications.

Product Highlights

This Copeland condensing unit is ideal for various refrigeration needs, offering reliable performance and broad refrigerant compatibility.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: M6GP-H064-CAV-177
• Country of Origin: USA

Technical Specifications

• Amps: 7.6
• Application Temperature: Low/Medium/High Temperature
• Base: Air-Cooled Steel
• Brand: Copeland
• Condenser Location: Indoor
• Condenser Motor Type: CSCR - (Capacitor Start Capacitor Run)
• Condenser Type: Air-Cooled
• Cycle/Hertz: 60 Hz
• Energy Star Rated: No
• Full Load Amps: 7.6
• Height: 11.79
• Length: 18.86
• Liquid Line Size (OD): 3/8\"
• OPT Code: M6GPH064CAV177
• Phase: Single
• Prop 65: Yes
• Protection: External Inherent
• Rated Load Amps (RLA): 5.3
• Refrigerant: R-404A; R-407C; R-448A; R-449A
• Suction Line Size (OD): 1/2\"
• UL Listed: Yes
• Voltage: 208-230 VAC
• Width: 14.34
• Minimum Circuit Ampacity (MCA): 7.6
• Compressor Type: Reciprocating
• Country of Origin: USA
• Cooling Capacity: 1460 BTU/Hour at -25 Deg F, 1830 BTU/Hour at -20 Deg F, 2210 BTU/Hour at -15 Deg F, 2580 BTU/Hour at -10 Deg F, 2970 BTU/Hour at -5 Deg F, 3360 BTU/Hour at 0 Deg F, 3760 BTU/Hour at 5 Deg F, 4170 BTU/Hour at 10 Deg F, 4600 BTU/Hour at 15 Deg F, 5040 BTU/Hour at 20 Deg F, 5490 at 25 Deg F, 5970 at 30 Deg F
• Current Rating: 5.3 Amp (Compressor Rated Load), 26.5 Amp (Compressor Locked Rotor)
• Frequency Rating: 60 Hertz
• Manufacturer Part Number: M6GP-H064-CAV-177
• Number Of Phases: 1
• Operating Temperature: 90 Deg F
• Approval: UL, CUL
• Airflow Rating: 450 CFM
• Compressor HP: 1/2 HP
