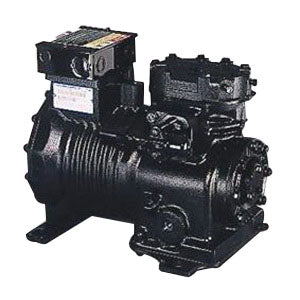

Copeland LAHA-031E-TAC-800 Semi-Hermetic Compressor 3 HP 208-230-3 D75-2509

Product Description

Copeland LAHA-031E-TAC-800 is a semi-hermetic air-cooled compressor designed for efficient refrigeration. It operates at three horsepower and functions with a voltage range of 208 to 230 VAC. The compressor is equipped with inherent protection features for reliable operation.

• 2 cylinders with a displacement of 11.44 cu-/Rev.
• Oil capacity: 80 ounces initial charge and 75 ounces for recharge.
• Rated load of 8.7 amps, locked rotor of 82 amps, and a minimum circuit of 12.2 amps.

Product Highlights

Ideal for refrigeration systems needing robust performance, the Copeland LAHA-031E-TAC-800 is built to last. It includes features suitable for various commercial applications, ensuring reliability.

Product Information

Standard Information

• Brand: Copeland
• Type: Air Cooled Semi-Hermetic

Technical Specifications

• Horsepower: 3 HP
• Voltage: 208/230
• Phase: Single-phase
• Refrigerant Compatibility: R404A/R507
• Dimensions: 11.63 x 11 x 15.75 inches
• Cylinder Bore: 2 1/4 inches
• Stroke: 1.44 inches
