Product Description

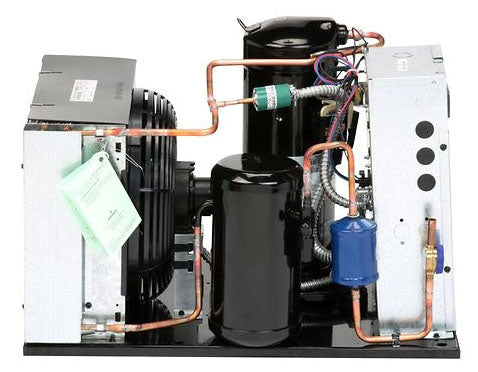

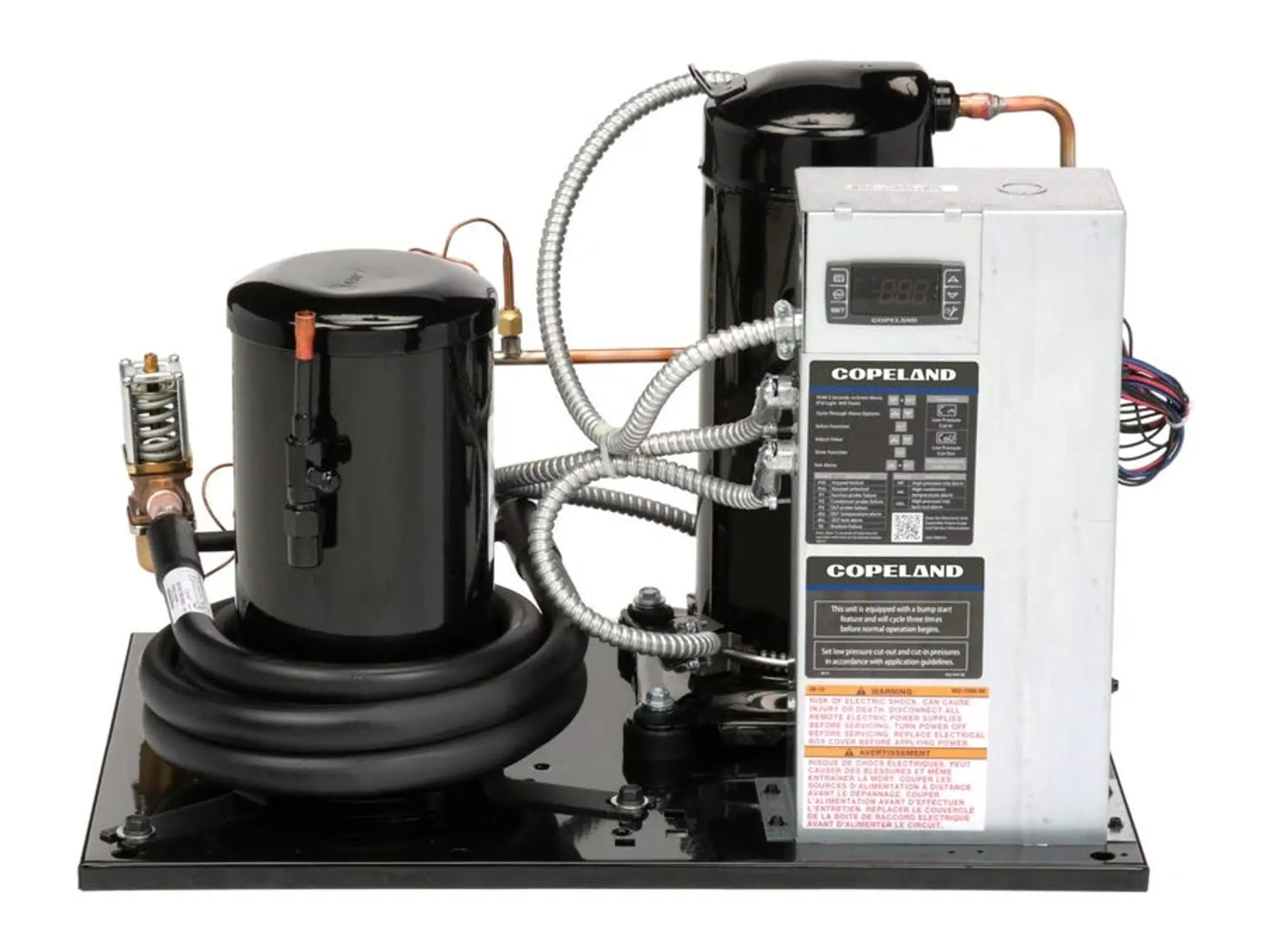

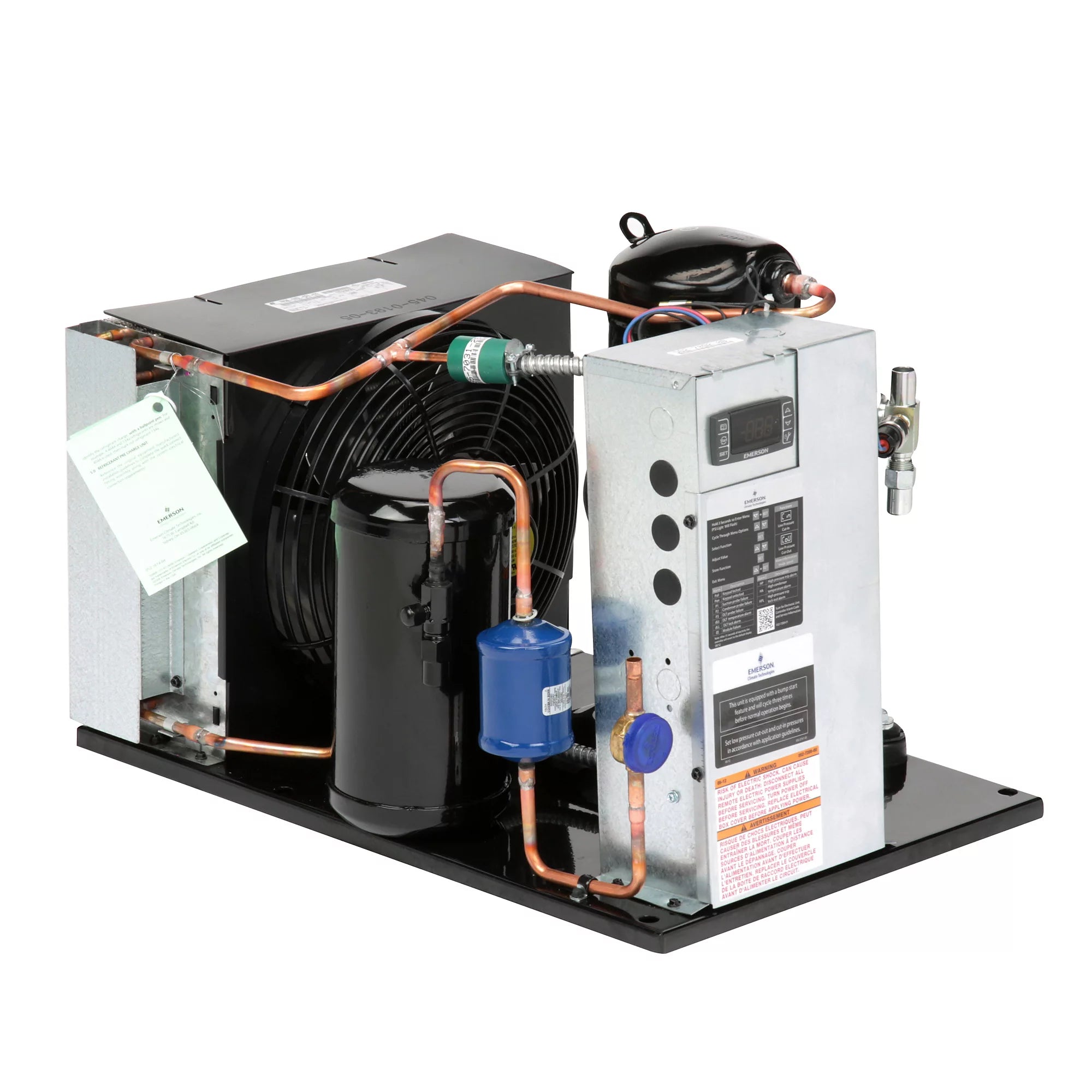

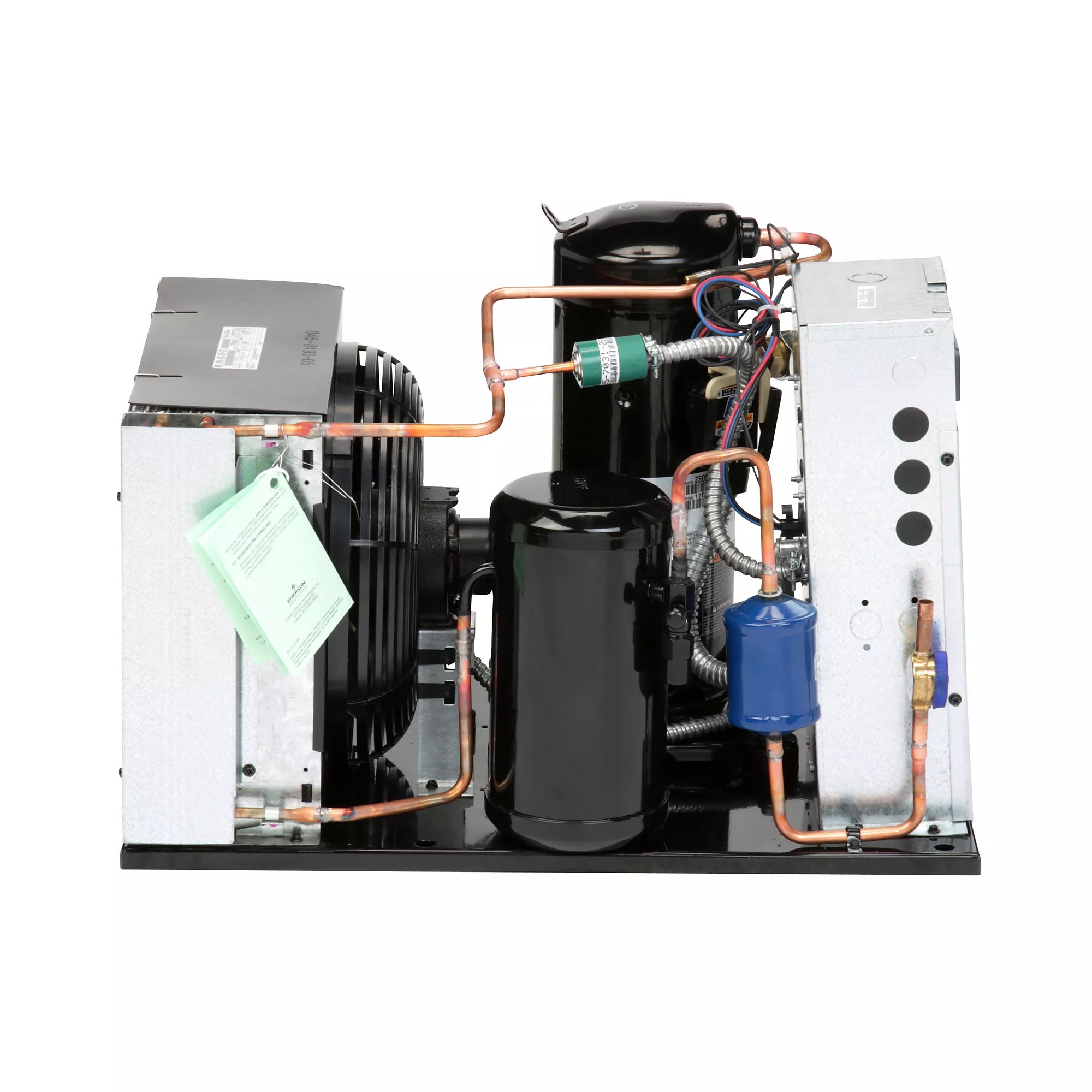

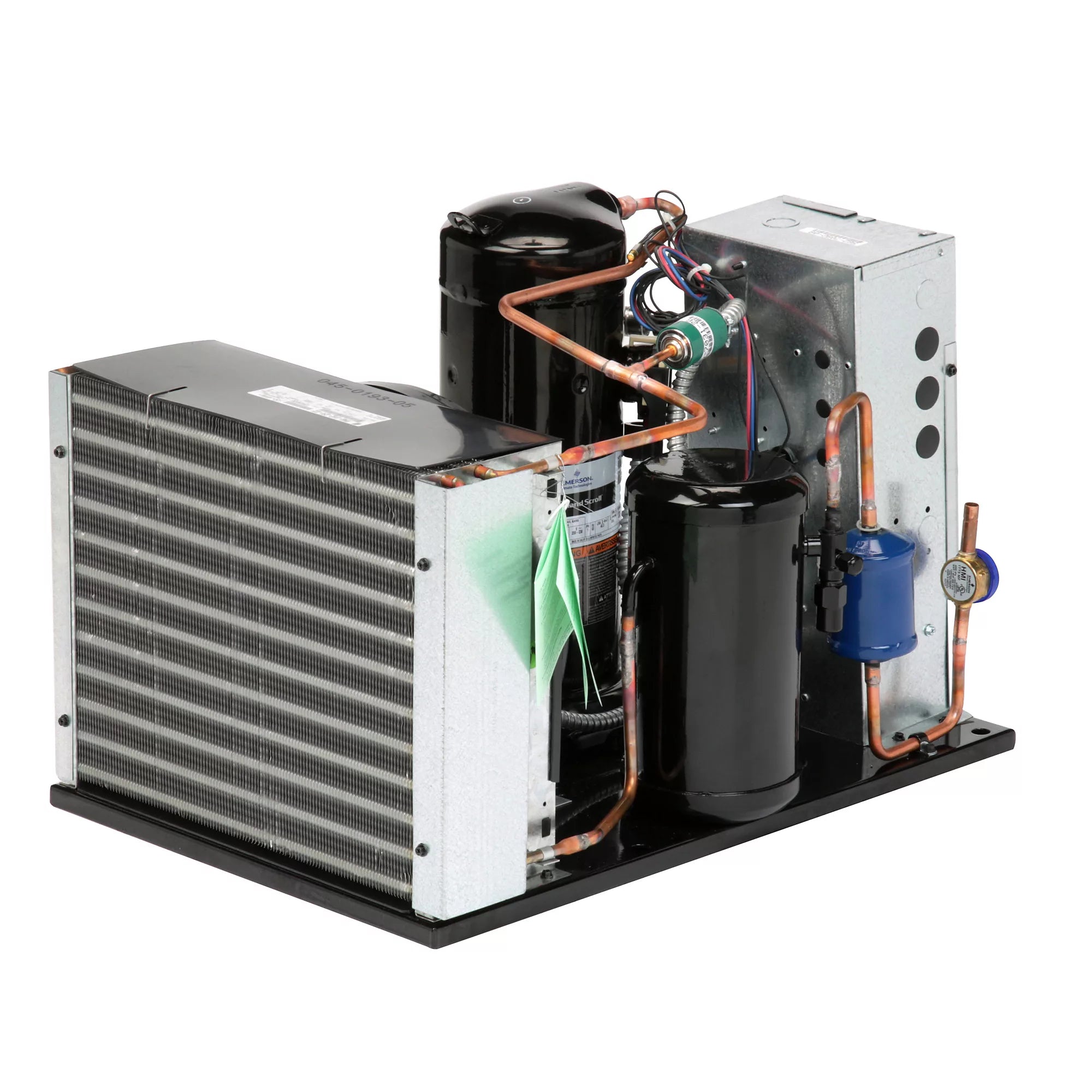

The Copeland FPAK-010Z-TFC-072 is an air-cooled refrigeration scroll condensing unit with hermetic compressor technology, designed for high, medium, and low-temperature refrigeration applications. This unit operates on 208-230 VAC, 60 Hz, three-phase power and features a 1 HP compressor. It is suitable for indoor use and utilizes R-134a refrigerant.
- Air-cooled steel base for effective heat dissipation.
- Scroll compressor technology ensures efficient operation.
- Internal inherent protection safeguards the compressor motor.
Product Highlights
Ideal for foodservice applications, this condensing unit offers reliability, high energy efficiency, and low sound and vibration.
Product Information
Standard Information
-
Brand: COPELAND
-
Manufacturer Part Number: FPAK-010Z-TFC-072
-
Country of Origin: USA
Technical Specifications
-
Application Temperature: Low/High Temperature
-
Base: Air-Cooled Steel Base
-
Brand: Copeland
-
Compressor HP: 1 HP
-
Condenser Location: Indoor
-
Condenser Motor Type: PSC (Permanent Split Capacitor)
-
Condenser Type: Air-Cooled
-
Cycle/Hertz: 60 Hz
-
Energy Star Rated: No
-
Full Load Amps: 11.2
-
Liquid Line Size: 3/8\"
-
OPT Code: FPAK010ZTFC072
-
Phase: Three
-
Prop 65: Yes
-
Protection: Internal Inherent
-
Rated Load Amps (RLA): 8
-
Refrigerant: R-134a
-
Suction Line Size: 5/8\"
-
UL Listed: Yes
-
Voltage: 208-230 VAC
-
Minimum Circuit Ampacity (MCA): 11.2
-
Compressor Type: Scroll
-
Country of Origin: USA
-
Cooling Capacity: 7100 BTU/Hour at 25 Deg F, 7810 BTU/Hour at 30 Deg F, 8570 BTU/Hour at 35 Deg F, 9370 BTU/Hour at 40 Deg F, 10200 BTU/Hour at 45 Deg F
-
Operating Temperature: 90 Deg F
-
Approval: UL, CUL
-
EER Rating: 8.9
-
Material: Steel
-
Oil Type: POE
-
Flow Rate: 650 cfm
-
Fuse Size: 15 A
-
Temperature Rating: 90 deg F
-
Electrical Connection: BX Conduit
-
Circuit Amperage Rating: 11.2 A
-
CFM: 650
-
Connection Liquid (In.): 3/8 S
-
Connection Suction (In.): 5/8 S
-
Connection Type: ODS
-
Hertz: 60
-
Horsepower: 1
-
Maximum Fuse / Breaker Size (Amps): 15
-
Oil: Polyol Ester
-
Receiver Capacity 90 % Full (Lbs.): 7.4 (R134a) 6.3 (R404A)
-
Receiver Included: Yes
