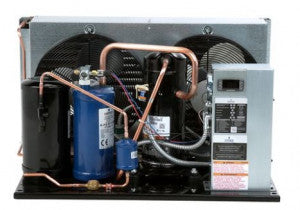

Copeland FFAP-A40Z-TFC-075 Condensing Unit

Product Description

The Copeland FFAP-A40Z-TFC-075 is a reliable air-cooled condensing unit designed for both low and medium temperature applications. It operates with a scroll compressor and is configured for 208-230V three-phase 60Hz power. This unit includes essential components such as a receiver with a valve, a suction valve, a fan guard, and necessary electrical connections for efficient operation.

• Air-cooled design for various temperature applications.
• Equipped with a scroll compressor for reliable performance.
• Compatible with multiple refrigerants including R134a, R404A, and R407C.

Product Highlights

This condensing unit is built with several key features for optimal functionality, including a durable construction and advanced controls.

Product Information

Standard Information

• Brand: Copeland
• MPN: FFAP-A40Z-TFC-075

Technical Specifications

• Application: Low Temp, Medium Temp
• Compressor Model: ZS26KAE-TF5-118
• Horsepower: 4
• Voltage: 208-230V
• Phase: Three
• Frequency: 60Hz
• Refrigerants Compatible: R134a, R404A, R407A, R407C, R448A, R449A
• Oil Type: POE
• Suction Line Size: 1-1/8 inches
• Liquid Line Size: 1/2 inches
• Connection Type: ODS
• Accumulator Included: Yes
• Drier Included: Yes
• Sight Glass Included: Yes
• Fan Guard Included: Yes
• Electrical Connection: BX Conduit
• Pressure Control: Dual
• Receiver Included: Yes
• Receiver Capacity (90% Full): 34.4 lbs
• Minimum Circuit Amps: 23
• Maximum Fuse / Breaker Size: 30 Amps
• Dimensions (L x W x H): 44.1 x 28.2 x 27.4 inches
• Shipping Weight: 245.00 lbs
• UL Rating: UL Listed
