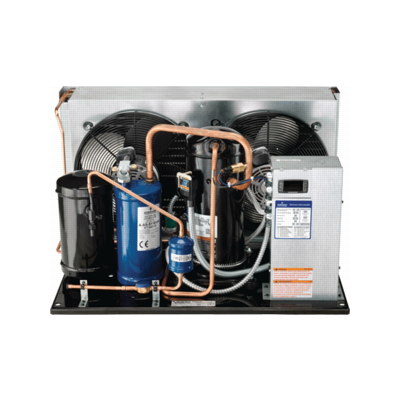

Copeland FFAP-040Z-TFC-071 Condensing Unit Air Cooled Scroll Compressor 4 HP

Product Description

The Copeland FFAP-040Z-TFC-071 is an air-cooled condensing unit featuring a scroll compressor. This unit is suitable for various indoor applications and supports multiple refrigerants, including R404A, R507, R134a, R407C, and R22. It operates on a voltage of 208-230/3/60 and is designed for medium temperature conditions.

• Durable air-cooled design with a scroll compressor.
• Supports a range of refrigerants for versatile applications.
• Incorporates essential components like a receiver and crankcase heater.

Product Highlights

This unit includes integrated features such as a receiver, accumulator, crankcase heater, sight glass, and filter drier. It is engineered to provide system protection and reliable operation for HVAC applications.

Product Information

Standard Information

• Vendor Name: Copeland
• URI Part Number: FFAP040ZTFC071

Technical Specifications

• Length: 28.2 inches
• Width: 44.1 inches
• Height: 26.8 inches
• Compressor: ZS26KAETF5
• Connection Liquid: 1/2 S
• Connection Suction: 1 1/8 S
• Horsepower: 4
• Maximum Fuse / Breaker Size: 35 Amps
• MCA: 23.0 Amps
• Oil: Polyol Ester
• Receiver Capacity: 29.5 lbs
• Refrigerant Types: R404A, R507, R134a, R407C, R22
• Voltage: 208-240V
• Phase: Three
• Frequency: 60Hz
