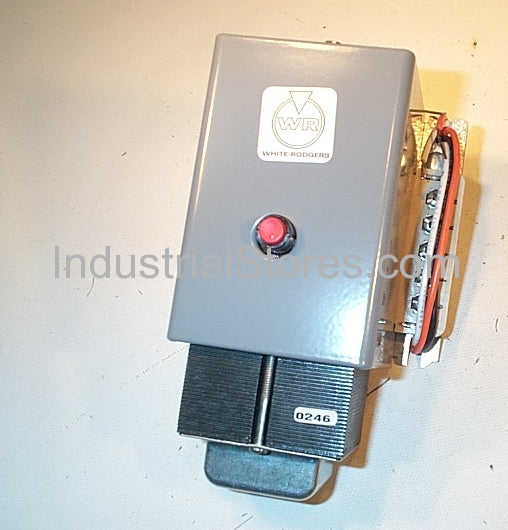

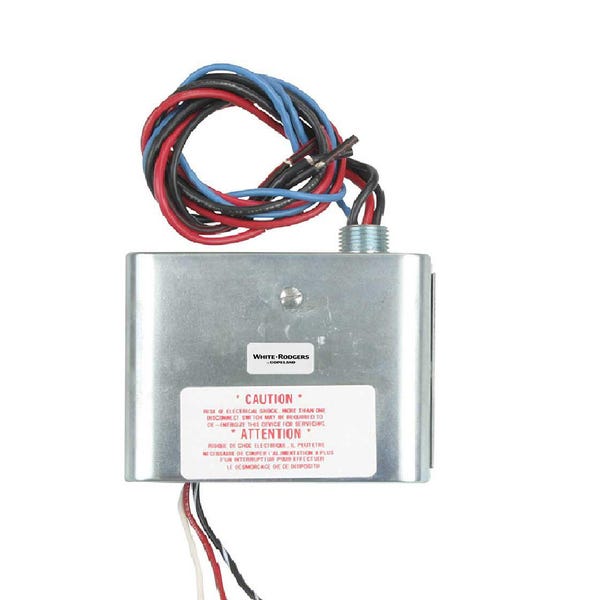

Copeland Comfort Control 668-451 Oil Burner Primary Control

Product Description

The Copeland Comfort Control 668-451 is an oil burner primary control. This device ensures the safe operation of oil burners in heating systems that require continuous ignition. The product features a metal enclosure and includes a line voltage safety switch that prevents prolonged burner operation in case of motor relay failure.

• Includes a line voltage safety switch for safety.
• Features solid-state flame detection circuitry.
• Operates effectively in extreme temperatures, from -40 to 150 degrees Fahrenheit.

Product Highlights

The Copeland Comfort Control 668-451 is designed for robust performance and safety in oil burner applications.

Product Information

Standard Information

• Input Voltage: 120 VAC, 60 Hz
• Control Voltage: 24 VAC

Technical Specifications

• Motor Relay Contacts Rating: Full 10 FLA, 60 LRA, 120 VAC
• Ignition Transformer Rating: 360 VA (3.0A)
• Safety Timing: 45 seconds
• Suitable Temperature: -40 to 150 degrees Fahrenheit (-40 to 66 degrees Celsius)
