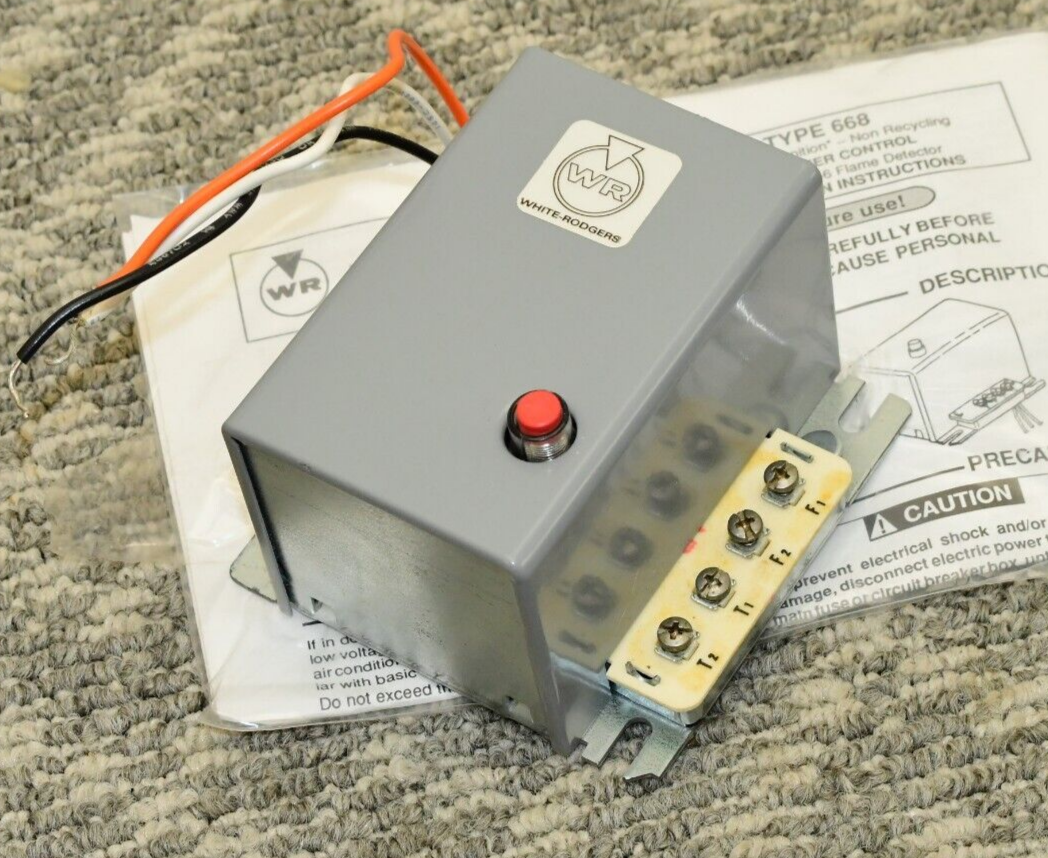

Copeland Comfort Control 668-401 Oil Burner Primary Control

Product Description

The Copeland Comfort Control 668-401 is an oil burner primary control suitable for oil-fired furnace systems. This model is recognized for its solid-state flame detection that operates efficiently in various conditions without being affected by vibrations or temperature changes. It includes a line voltage safety switch that prevents burner run-on and resumes operation following a momentary flame failure or power cut. Compatible with standard two-wire thermostats, this control is essential for reliable furnace management.

• Features 45-second safety switch timing.
• Designed for intermittent ignition.
• Includes a high ambient motor relay.

Product Highlights

Reliable oil burner control with advanced safety features.

Product Information

Standard Information

• Brand: Copeland Comfort Control
• MPN: 668-401

Technical Specifications

• Input Voltage: 120 VAC, 60 Hz
• Control Voltage: 24 VAC
• Motor Relay Contacts: 10 FLA, 60 LRA, 120 VAC
• Ignition Transformer Rating: 360 VA (3.0 A)
• Thermostat Anticipator Setting: 0.4 A
• Electrical Connection: 10 Inch Wire Lead
• Enclosure Type: Gray Metal
• Ignition Type: Intermittent
• Mounting Type: Junction Box
• Safety Switch Timing: 45 sec
