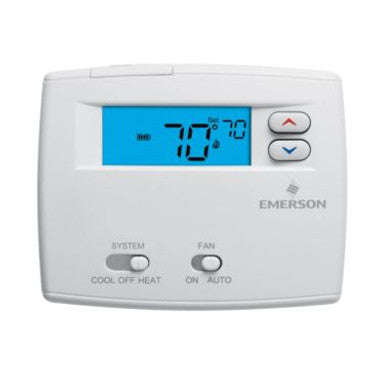

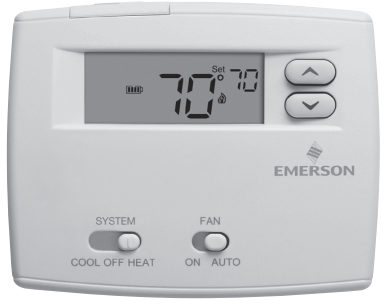

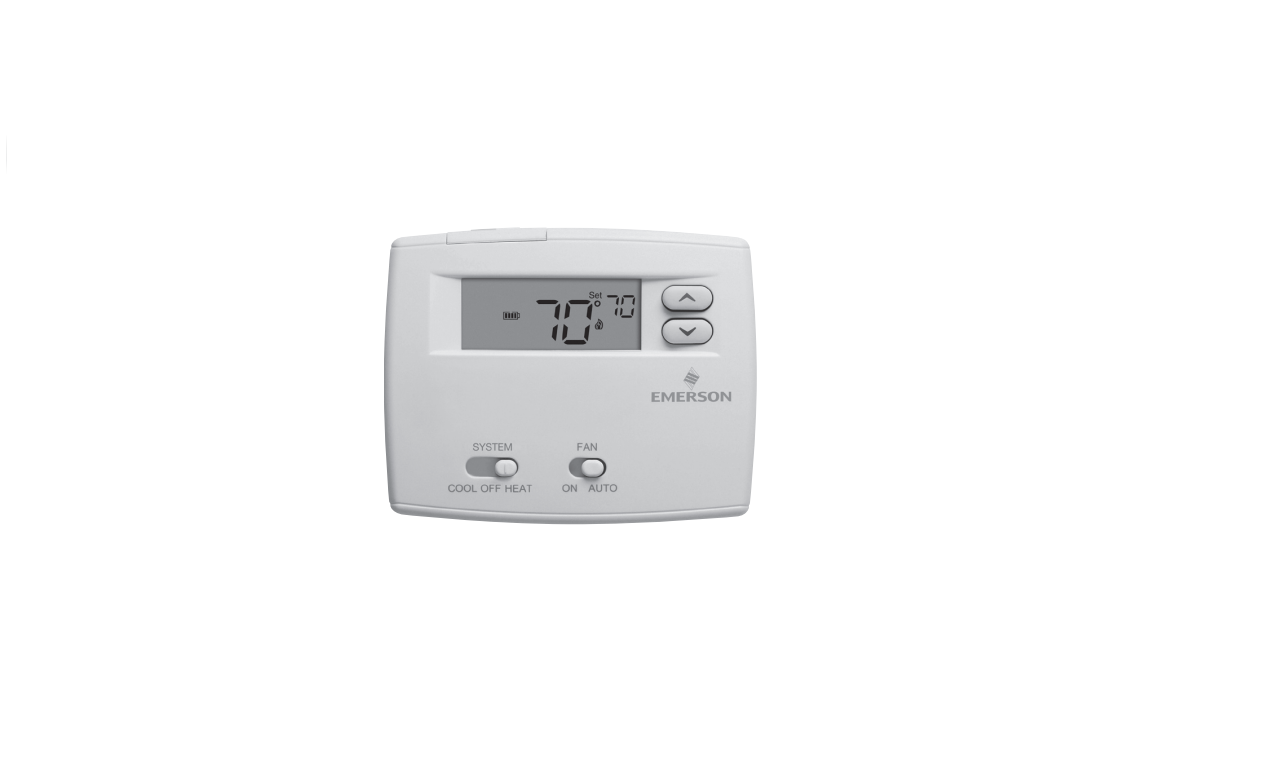

Copeland Comfort Control 1F86-0244 Non-Programmable Thermostat

Product Description

The Copeland Comfort Control 1F86-0244 is a reliable non-programmable thermostat, ideal for single-stage heating and cooling systems. This device operates with an electrical rating from millivolts to thirty volts AC, at fifty or sixty Hertz, or direct current. It can be powered through hardwiring between twenty and thirty volts AC or by battery. The easy push-connect, color-coded terminals simplify installation.

• Features color-coded push-connect terminals for simplified wiring.
• Includes a Cool-Savings function to reduce energy consumption during peak usage.
• Comfortable temperature control range from forty-five to ninety degrees Fahrenheit.

Product Highlights

This thermostat is suitable for low-voltage systems and helps in energy conservation.

Product Information

Standard Information

• Device Type: Non-Programmable Thermostat
• Heating Stages: 1
• Cooling Stages: 1

Technical Specifications

• Dimensions: 4.75 inches x 3.75 inches x 1.5 inches
• Weight: 0.6 lb.
• Electrical Rating: mV to 30 VAC, 50/60 Hz or DC
• Input-Hardwire: 20 to 30 VAC
• Setpoint Range: 45°F to 90°F (7°C to 32°C)
• Differential: Heat 0.6°F; Cool 1.2°F (adjustable)
• Operating Ambient: 32°F to +105°F (0°C to +41°C)
• Operating Humidity: 90% non-condensing max.
• Shipping Temperature Range: -40°F to +150°F (-40°C to +65°C)
