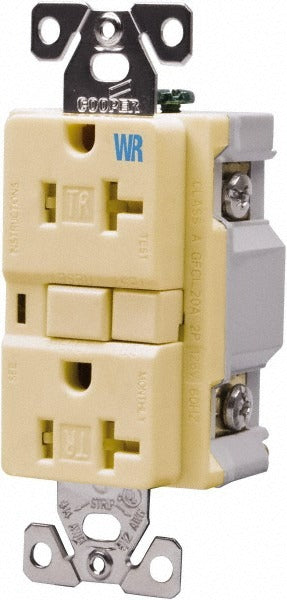

Cooper Wiring Devices TRSGFNL20V Gfci Receptacle 20A 125V

Product Description

The COOPER WIRING DEVICES TRSGFNL20V is a specification-grade, tamper-resistant GFCI receptacle rated for 20 amps at 125 volts AC. Built to commercial grade standards, this single-phase, 2-pole, 3-wire device features a NEMA 5-20R configuration and a self-grounding design that simplifies installation in metal outlet boxes. The thermoplastic housing is rated for commercial environments, and the tamper-resistant shutters prevent accidental contact with live terminals. Licensed electricians install this receptacle in commercial and light industrial settings where ground-fault protection and tamper resistance are both required by code.

This GFCI receptacle is suited for commercial construction, tenant improvement, and renovation projects where the National Electrical Code mandates ground-fault circuit interrupter protection. Typical locations include kitchens, bathrooms, wet bars, garages, outdoor installations, and other areas defined by NEC as requiring GFCI protection. The 20-amp rating makes it appropriate for circuits serving equipment with higher current demand than a standard 15-amp residential receptacle. Back and side wiring options give installers flexibility in crowded electrical boxes.

Key Features

• 20-amp, 125-volt NEMA 5-20R configuration for commercial 20A branch circuits
• Tamper-resistant shutters block insertion of foreign objects into live terminals
• Self-grounding design eliminates the need for a separate grounding pigtail when used with metal boxes
• Back and side wiring terminals for installation flexibility
• Specification grade, thermoplastic construction for commercial-grade durability
• cULus Listed and meets NOM 426 standards

Compatibility

Designed as a specification-grade OEM-style GFCI receptacle for commercial 20-amp, 125-volt single-phase branch circuits requiring NEMA 5-20R outlets with tamper-resistant and ground-fault protection features.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code and applicable local codes. Always de-energize the branch circuit at the panel and verify absence of voltage with a suitable tester before beginning work. The self-grounding feature requires a properly grounded metal outlet box to function as intended. Follow NEC Article 406 for receptacle installation requirements and Article 210 for GFCI placement requirements.
