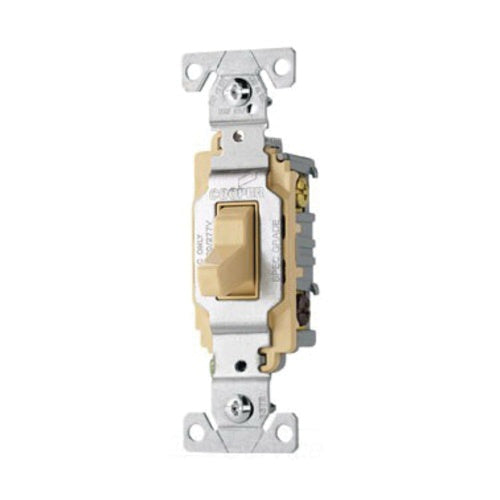

Cooper Wiring Device CS320V 3-Pole 120/277-Volt AC 20-Amp 3-Way Commercial/Specification Grade AC Toggle Quiet Switch

Product Description

The Cooper Wiring Device CS320V is a 3-pole, 3-way AC toggle quiet switch. It is designed for use in both commercial and specification-grade applications, rated for 120/277 volts AC and up to 20 amps. This switch features a nylon toggle and a durable PVC body, ensuring longevity and reliable performance.

• Rated for maximum load capacity of 1 hp at 120 volts AC and 2 hp at 277 volts AC
• Designed to operate in a wide temperature range from -20 to 60 degrees Celsius
• Side wired terminal connection accommodating wire sizes of 14 to 10 AWG

Product Highlights

This switch is suitable for fluorescent lighting typical in commercial settings. It includes a grounding feature and has a dielectric strength of 1500 volts, making it safe for various electrical applications.

Product Information

Standard Information

• Brand: Cooper Wiring Device
• Manufacturer Part Number: CS320V

Technical Specifications

• Voltage Rating: 120/277 volt AC
• Amperage Rating: 20 amp
• Number of Poles: 3
• Dimensions: 1.3 inches wide x 0.902 inches deep x 4.2 inches high
• Material: PVC body, nylon toggle
• Grounding: Yes
• Environmental Conditions: V0 flammability rated per UL94
• Dielectric Strength: 1500 volts
