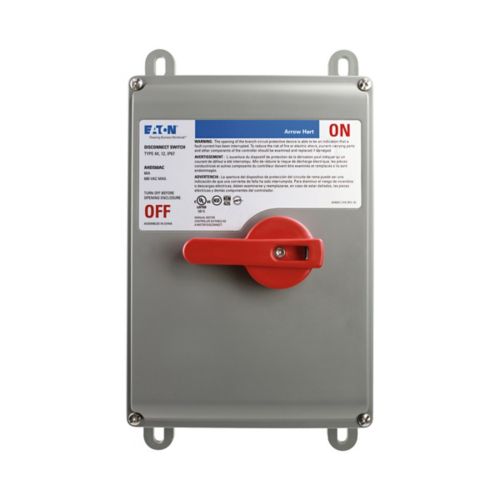

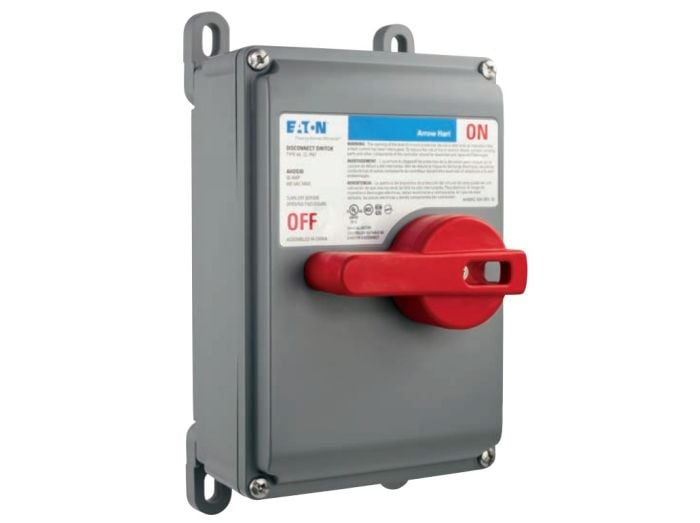

Cooper Wiring AHDS60 Motor Control Disconnect Switch 60A

Product Description

The COOPER WIRING AHDS60 is an Eaton motor control disconnect switch designed for industrial applications. Rated for #14-4 AWG, 60A, and 600V, this three-phase rotary switch features a NEMA 4X VALOX thermoplastic enclosure suitable for washdown environments. It supports flush or 1/4" spacing with mounting feet/DIN rail.

• Rated for 60A and 600V
• NEMA 4X VALOX thermoplastic enclosure
• Suitable for industrial and washdown environments

Product Highlights

The COOPER WIRING AHDS60 is ideal for industrial settings requiring a robust and reliable motor control disconnect switch.

Product Information

Standard Information

• Brand: COOPER WIRING
• Manufacturer Part Number: AHDS60

Technical Specifications

• Product Name: Eaton motor control disconnect switch
• Catalog Number: AHDS60
• UPC: 032664741357
• Product Length/Depth: 11 in
• Product Height: 5.5 in
• Product Width: 7.5 in
• Compliances: RoHS Compliant
• Certifications: cULus Listed
• Product Type: Motor control disconnect switch
• NEMA Rating: 4X
• Enclosure: NEMA 4X
• Type: Motor control disconnect switch
• Amperage Rating: 60A
• Voltage rating: 600 V
• Number of poles: Three-pole
• Phase: Three-phase
• Enclosure material: VALOX thermoplastic
• Application: Industrial
• Device grade: Industrial
• Environmental conditions: Complex Washdown
• Switch type: Rotary switch
• Mounting method: Flush or 1/4 in spacing Mounting feet/DIN rail
• Allowable wire size: #14-4 AWG
• Material: Thermoplastic
• MODEL: AHDS60
• BRAND: Cooper Wiring
• Product Series: AHDS
• Family Series: Eaton Disconnect Switches, AHDS Series
• Poles: 3
• Current Rating: 60 A
• AC Voltage: 600 VAC
• Operator Type: Pistol - Red
• Fusible: No
• Enclosure Composition: Non-Metallic
• Approvals: cULus
