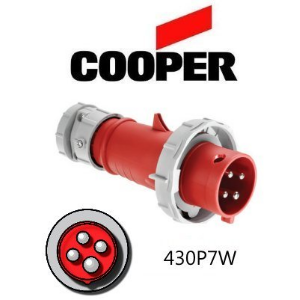

Cooper Wiring AH430P7W Plug Pin&Sleeve 30A 480V

Product Description

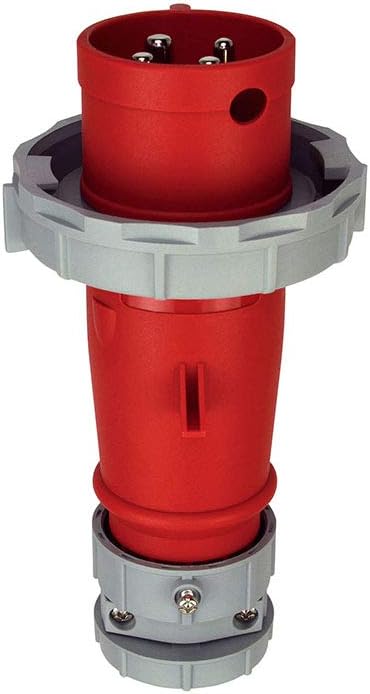

The COOPER WIRING AH430P7W is an Eaton Arrow Hart pin and sleeve plug. Rated IP69K and IP67, this plug is designed for high-pressure, high-temperature washdown applications. It features a mechanical cord clamp with a silicone grommet seal and locking screw to ensure a watertight strain relief system.

• Nickel plated contacts with self-cleaning field-proven pressure bands
• Individual silicone sealing grommets with cord diameter range
• Watertight cap meets IP67 and IP69K protection standards

Product Highlights

Sturdy nylon construction and corrosion-resistant components ensure lasting electrical performance in harsh environments. Color-coded front housing allows for easy voltage identification.

Product Information

Standard Information

• Brand: COOPER WIRING
• Manufacturer Part Number: AH430P7W

Technical Specifications

• Type: Plug
• Amperage Rating: 30A
• Voltage rating: 480 V
• Contact material: Nickel plated brass
• Application: Industrial, food and beverage, wastewater treatment
• Number of wires: 4 Grounding
• Number of poles: Three-pole
• Cord diameter: 0.433-0.985in (1.10-2.5cm)
• Phase: Three-phase
• Environmental resistance: IP69K IP67
• Gender: Male
• Horsepower: 10 hp
• Allowable wire size: #10-2 AWG
• Torque rating: 10 lbf-inch
• Design type: Pin and sleeve plug
• Face/body material: Nylon
• Material: Nylon
• Certifications: cRUus
• Manufacturer Part Number: AH430P7W
• Manufacturer: Eaton
• Product Series: IEC 309 Watertight
• Family Series: Eaton Plugs & Receptacles, IEC 309 Watertight Series
• Description: Plug Pin&Sleeve 30A 480V 3PH 3P4W WT RD
• Connection Type: Plug
• Connection Description: Water Resistant
• Current Rating: 30 A
• Number of Poles: 3
• Lockout-Tagout: No
• Auxiliary Contact: None
• Built-In Strain Relief: No
• Protection Rating: IP67, IP69K
• Color Code: Red
• Approvals: cULus
• Plug Type: 430P7W (IEC 60309)
• Amperage: 30 Amps
• # of Poles / Wires: 3-Pole, 4 Wire
• Wire AWG Compatibility: 8 AWG to 12 AWG
• IP Rating: IP67
• MODEL: AH430P7W
• BRAND: Cooper Wiring
• SKU: 2847810
• UOM: each
