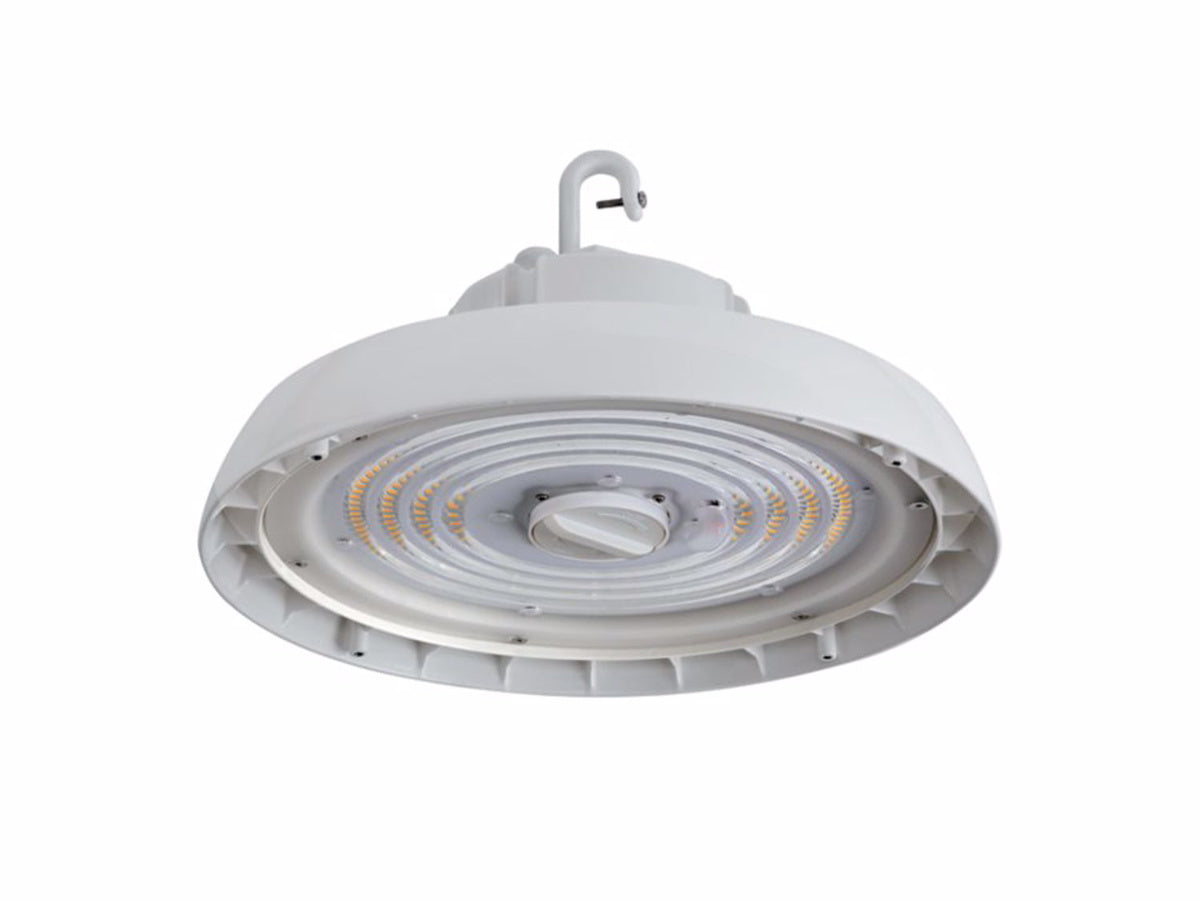

Cooper UHBS22436MVL8C5U LED Round High Bay 15 inches Diameter 120-347V

Product Description

The Cooper UHBS22436MVL8C5U LED Round High Bay is a versatile lighting solution. This Metalux UHBS series luminaire features selectable CCT (4000K or 5000K) and lumen output up to 36,000 lumens. Operating on 120-347V, it includes 0-10V dimming and a sensor-ready plug-in. Ideal for manufacturing, retail, warehouse, and gymnasium applications.

• Up to 36,000 lumens and 166 lm/W
• Selectable CCT (4000/5000K) and Lumen
• Multi-volt 120 thru 347V input, 0-10V dimming driver

Product Highlights

Round high bay with selectable CCT and lumen output. Features 120-347V multi-volt, 0-10V dimming, and a sensor-ready connection.

Product Information

Standard Information

• Brand: COOPER
• Manufacturer Part Number: UHBS22436MVL8C5U

Technical Specifications

• Manufacturer: Cooper Lighting Solutions
• Fixture Wattage: 240 Max W
• Housing Finish: White polyester powder coat
• Lamp Type: LED
• Voltage Rating: 120-347 V
• Type: Round, Selectable CCT, Selectable Lumen, Wet Location
• Series: Metalux, UHBS Series
• Lighting Technology: LED
• Color Temperature: Selectable, 4000K, 5000K
• Color Rendering Index (CRI): >82 CRI
• Lens Type: Polycarbonate Lens
• Lumens: Selectable, High, Medium, Low, 36,000 Max
• Enclosure Type: IP65, Wet Location
• Mounting Type: Suspension Mount, Mounting Hook
• Housing Material: Diecast Aluminum
• Environmental Condition: Wet Location
• Dimmable: Dimmable
• Fixture Type: Highbay
• Distribution: Medium
• Wattage: 156 - 239 W
• Diameter: 15 in
• Ballast Type: LED Driver
