Cooper SPHB-2436SE-M-UNV-L84050-CD-SP1-U Metalux SPHB LED Selectable Linear High Bay 249 W

Product Description

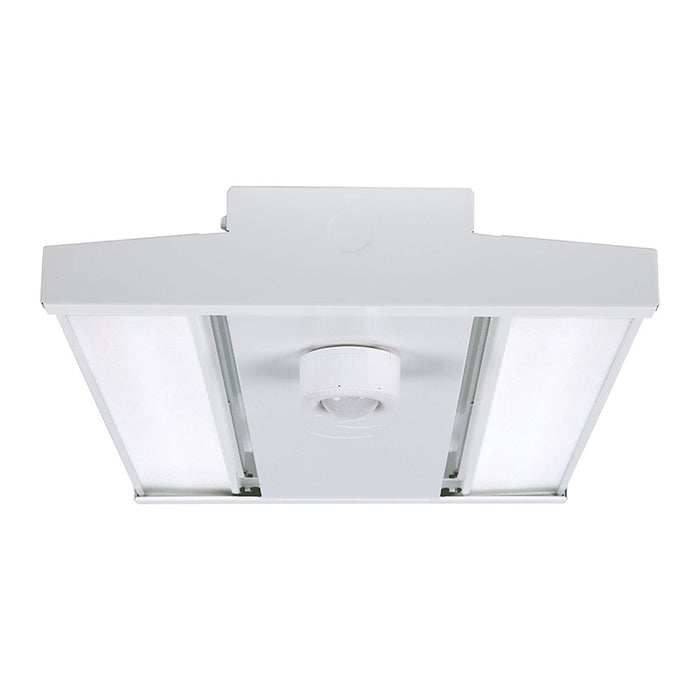

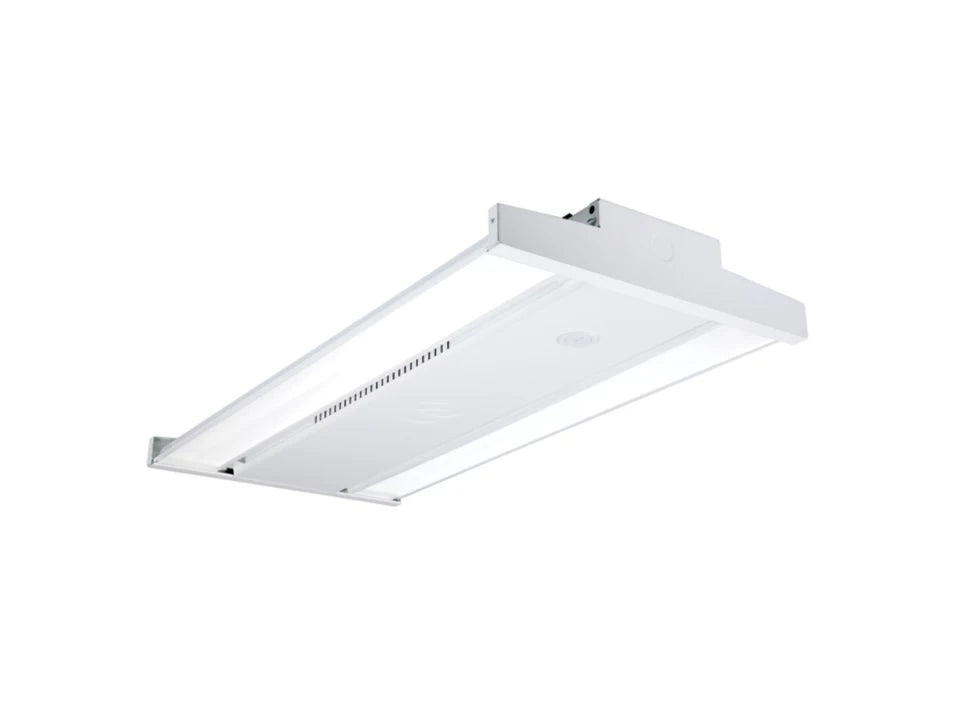

The COOPER SPHB-2436SE-M-UNV-L84050-CD-SP1-U Metalux SPHB LED Selectable Linear High Bay is a compact linear high bay with selectable CCT. This high bay operates at 120-277V and 249W. It features a sensor-ready port for in-field installation and offers high-performance efficacy up to 157 lm/W.

• Compact linear design for easy install
• High Performance efficacy up to 157 lm/W
• Optimized medium distribution

Product Highlights

This high bay is designed for easy installation and optimized performance in industrial and commercial settings.

Product Information

Standard Information

• Brand: COOPER
• Manufacturer Part Number: SPHB-2436SE-M-UNV-L84050-CD-SP1-U
• Country of Origin: China

Technical Specifications

• Brand Name: Metalux
• Family: SPHB LED Selectable Linear High Bay
• Lamp Type: LED
• UPC: 080083289288
• Amperage Rating: 0.89A at 277V
• Color Temperature Max: 5000K
• Mounting: Surface/Pendant
• Voltage Rating: 120-277V
• Wattage: 249 W
• Manufacturer: Cooper Lighting Solutions
• Fixture Wattage: 249 W
• Type: Compact Linear High Bay
• Series: SPHB, Metalux
• Lighting Technology: LED
• Color Temperature: Selectable CCT, 4000K, 5000K
• Color Rendering Index (CRI): 80 CRI
• Lumens: Selectable Lumens, 24000 Lumen, 30000 Lumen, 36000 Lumen
• Enclosure Type: Damp Location
• Mounting Type: Surface Mount, Pendant Mount
• Certifications: DLC, UL
• Watts: 249
• CRI: 80+

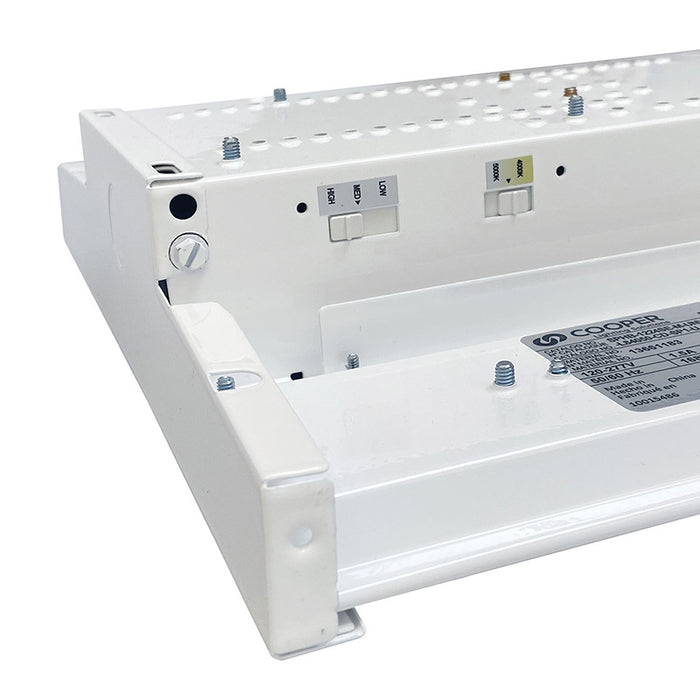

• Special Features: CCT Selectable
• Input Volts: 120-277V
• Dimmable: Yes
• Life (hrs): 60,000 hours
• Order Code: SPHB-2436SE-M-UNV-L84050-CD-SP1-U
• Correlated Color Temp: 5000 K
• Estimated Life: L70 at 173,000 Hours
• Dimming: 0-10V dimming, 10% with dim-to-off standard
• Height: 4.3 Inch
• Length: 25.88"
• Width: 12.25"
