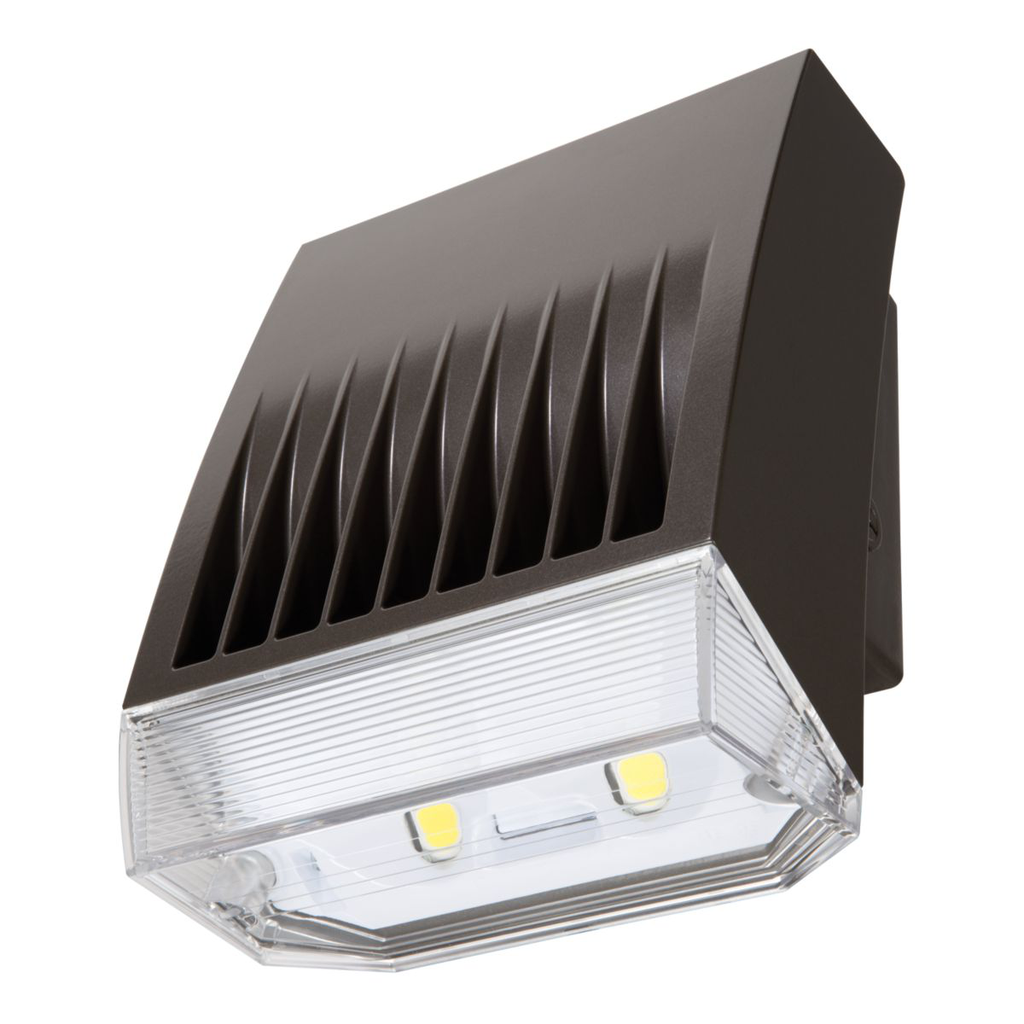

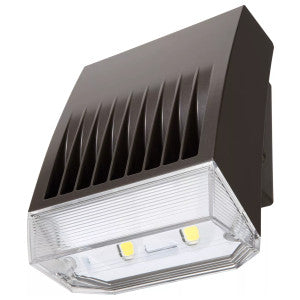

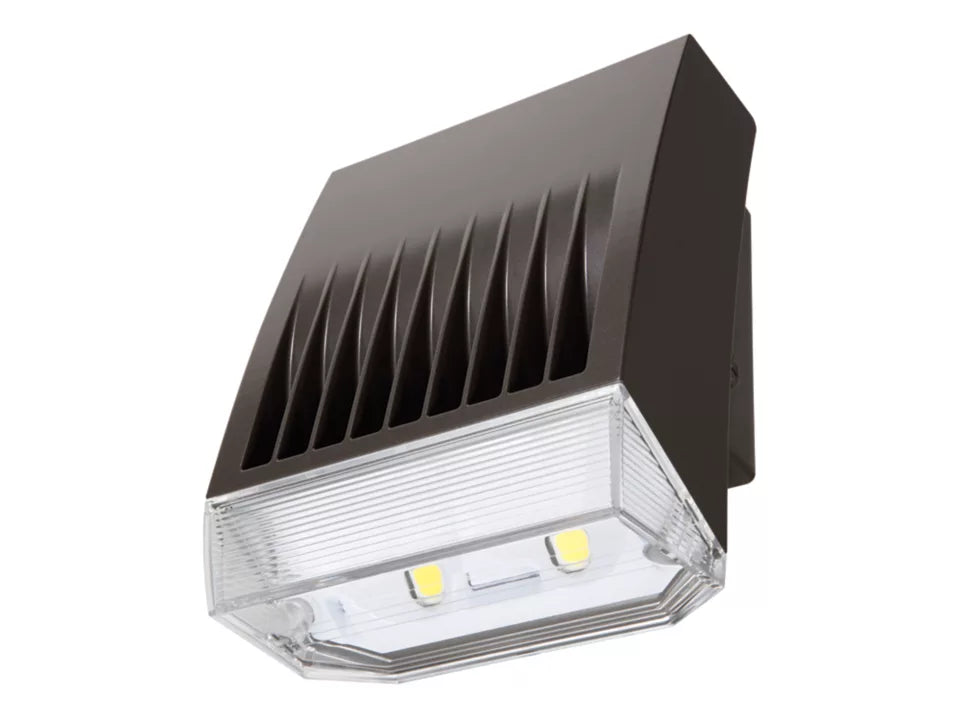

Cooper Lighting Solutions XTOR8BRL Crosstour Maxx LED 81W Wall Mount Refractive Lens

Product Description

The COOPER LIGHTING SOLUTIONS XTOR8BRL Lumark Crosstour MAXX LED wall pack provides architectural style with energy-efficient LEDs. Features rugged die-cast aluminum construction, secure lock hinges, and stainless steel hardware. Ideal for wall/surface, inverted mount for facade/canopy illumination, perimeter and site lighting. Applications include walkways, building entrances, parking areas, and loading docks.

• 9.438 IN Length 6.813 IN Width 12.625 IN Height
• Wall, inverted or pole mount. Energy saving replacement up to 250W HID
• Patented heavy-duty construction, maximum LED performance

Product Highlights

The Lumark Crosstour MAXX LED wall pack series offers a low-profile design with super bright, energy-efficient LEDs suitable for various lighting applications.

Product Information

Standard Information

• Brand: COOPER LIGHTING SOLUTIONS
• Manufacturer Part Number: XTOR8BRL
• Country of Origin: Mexico

Technical Specifications

• Type: Wall Mount
• Brand: Cooper Lighting Solutions
• Width: 6.813 in
• Finish: Carbon Bronze
• Height: 12-5/8 Inch
• Length: 9.438 Inch
• Lumens: 8635 Lumens
• Voltage: 120-277 Volt
• Wattage: 81 Watt
• Amperage: 0.29 at 277V
• Material: Aluminum
• Lamp Type: LED
• Sub Brand: Market Pro
• Applications: Lighting
• Mounting Type: Surface,Wall
• Color Accuracy: 70 CRI
• Number of Lamps: 1
• Color Temperature: 5000 K
• Correlated Color Temp: 5000 K
• Fixture Wattage: 81 W
• Application: Lighting, Wall, Surface, Inverted Mount For Facade, Canopy Illumination, Post, Bollard, Low Level Pathway Illumination Including Stairs, Building Entrances, Multi-Use Facilities, Apartment Buildings, Institutions, Schools, Stairways, Loading Docks and Wet Locations
• Average Life: 72000 hr
• Color Rendering Index CRI: 70
• Enclosure: IP66
• Housing Finish: Carbon Bronze
• Housing Material: Die Cast Aluminum
• Includes: Lamp
• Light Color: Bright White
• Standards/Approvals: BAA Compliant|DLC Approved|DLC Approved|ECCN EAR99NLR|NoM Certified|RoHS Compliant|UL/cUL for Wet Locations
• Voltage Rating: 120 to 277 VAC
• Mounting: Wall/Surface Mount
• Optical - Wall Packs: Refractive Lens
• Series: Crosstour MAXX Series
• ECCN: EAR99
• Lens Type: Refractive
