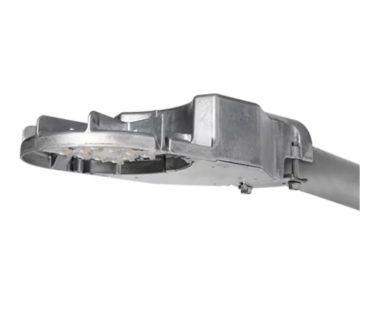

Cooper Lighting Solutions CTKRV1C Led Area Light 30W 4500 Lumens

Product Description

The COOPER LIGHTING SOLUTIONS CTKRV1C is a 30-watt LED area light designed for outdoor dusk-to-dawn operation in commercial and light industrial applications. Built on an aluminum housing with a natural finish, it delivers 4500 lumens at a 4000K color temperature, providing crisp neutral-white light suited for parking areas, building perimeters, and walkways. The integrated NEMA twist-lock photocontrol enables automatic on/off operation without additional wiring. Rated for 120-277 volts across 50/60 Hz systems, this fixture supports universal voltage installations and includes dimming capability for added control flexibility. Electricians and lighting contractors typically install this unit at mounting heights of 10 to 30 feet on poles or wall brackets.

This fixture is intended for outdoor area lighting in residential, commercial, and light industrial settings. It suits parking lot poles, building-mounted wall applications, and campus pathway lighting where a single-lamp LED solution is preferred. The NEMA twist-lock socket allows a standard shorting cap or a separately supplied photocontrol to be used interchangeably. Dimming support makes it compatible with site lighting control systems that require stepped or continuous dimming. The 60,000-hour rated lamp life reduces maintenance frequency on high-pole or hard-to-access installations.

Key Features

• 30-watt LED lamp delivers 4500 lumens at 4000K neutral-white color temperature
• Universal voltage rating of 120-277 volts supports a wide range of electrical services
• NEMA twist-lock photocontrol socket for dusk-to-dawn automatic operation
• Dimmable for compatibility with site lighting control systems
• Aluminum housing with natural finish for outdoor durability
• 60,000-hour average rated life reduces maintenance frequency on elevated mounts

Compatibility

Designed as an OEM-style outdoor LED area light fixture suitable for standard pole and wall mounting configurations with NEMA twist-lock photocontrol sockets at typical mounting heights of 10 to 30 feet.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local ordinances. Shut off and lock out power at the circuit breaker before wiring the fixture or handling the NEMA photocontrol socket. Verify the supply voltage matches the fixture rating before energizing. The NEMA twist-lock socket must be fitted with either a compatible photocontrol or a shorting cap — leaving it open will prevent the fixture from operating.

Technical Specifications

• Lamp Type: LED
• Lamp Wattage: 30 watts
• Lumens: 4500 lumens
• Color Temperature: 4000 K
• Color Rendering Index (CRI): 70
• Voltage Rating: 120-277 volts
• Amperage Rating: 11 amps
• Frequency Rating: 50/60 Hz
• Dimmable: Yes
• Mounting Type: Pole, Wall
• Number of Lamps: 1
• Dimensions: 12.25 inches L x 7.063 inches W x 20.875 inches H
• Fixture Material: Aluminum
• Fixture Finish: Natural
• Average Rated Life: 60,000 hours

Standard Information

• Brand: COOPER LIGHTING SOLUTIONS
• Manufacturer Part Number: CTKRV1C
