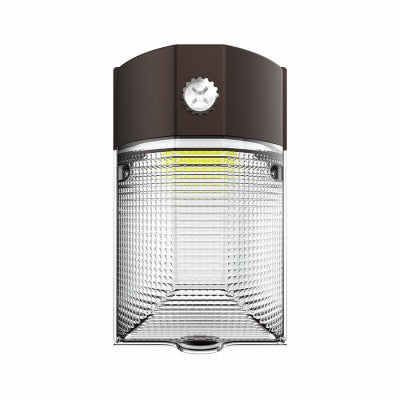

Cooper Lighting MWP40FSUNVDBZ Led Mini Wall Pack 30W

Product Description

The COOPER LIGHTING MWP40FSUNVDBZ is an LED mini wall pack designed for security and area lighting in commercial and residential applications. It delivers 4,000 lumens of output at 30 watts, making it a high-efficacy option for perimeter and entryway illumination. A physical switch on the fixture housing allows the installer to select between three color temperatures: 3000K, 4000K, or 5000K. The same housing includes a second switch to enable or disable the integrated photocell, giving the fixture dual functionality as either a dusk-to-dawn or switch-operated luminaire. The housing is constructed from aluminum for corrosion resistance and is rated for long-term outdoor exposure.

This fixture is suited for mounting on exterior walls, posts, or columns in light commercial, industrial, and residential settings. It is commonly used for building perimeter security lighting, parking lot pedestrian areas, stairwells, and loading docks. The universal junction box mounting knockout simplifies rough-in, and a surface-mount conduit entry option is included for installations without a recessed junction box. The prismatic clear UV-resistant polycarbonate lens diffuses output to reduce glare while maintaining adequate foot-candle levels at grade. Rated for more than 50,000 hours of maintenance-free service life.

Key Features

• 4,000 lumens output at 30 watts for high-efficacy security lighting
• Selectable color temperature: 3000K, 4000K, or 5000K via physical switch on housing
• Dual-mode operation: dusk-to-dawn photocell or manual switch control, toggled on fixture
• Aluminum housing construction for corrosion resistance in outdoor environments
• Prismatic clear UV-resistant polycarbonate lens for diffuse, glare-free distribution
• Rated 50,000-plus hours of maintenance-free LED lifespan
• Universal junction box knockout plus surface-mount conduit entry included

Compatibility

Designed as an OEM-style replacement or new-installation LED wall pack for standard single-gang or double-gang exterior junction box configurations on walls, posts, or columns.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Shut off branch circuit power at the panel before wiring the fixture. Verify that the junction box is rated for exterior use and for the weight of the fixture before mounting. Set the color temperature and photocell switches to the desired positions before securing the fixture to the wall to avoid disassembly after mounting.

Technical Specifications

• Lumen Output: 4,000 lumens
• Wattage: 30 watts
• Selectable Color Temperature: 3000K, 4000K, 5000K
• Photocell: Integrated, switchable dusk-to-dawn or manual operation
• Housing Material: Aluminum
• Lens Material: Prismatic clear UV-resistant polycarbonate
• Rated Lifespan: 50,000-plus hours
• Mounting: Universal junction box knockout; surface-mount conduit entry
• Weight: 10.89 pounds
• Package Quantity: 4 per unit of measure

Standard Information

• Brand: COOPER LIGHTING
• Manufacturer Part Number: MWP40FSUNVDBZ
