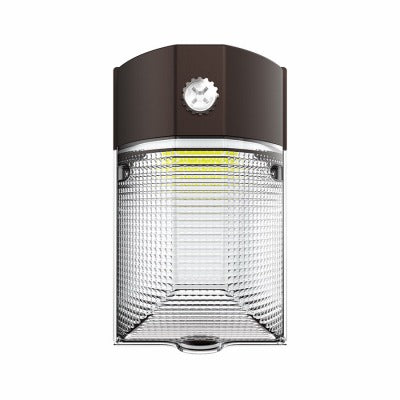

Cooper Lighting MWP20FSUNVDBZ Led Mini Wall Pack 2000lm

Product Description

The COOPER LIGHTING MWP20FSUNVDBZ is an LED mini wall pack designed for outdoor security and area lighting. It produces 2000 lumens while drawing only 15 watts, making it an efficient option for perimeter and entryway applications. The fixture features a built-in physical switch that lets the installer select one of three color temperatures — 3000K, 4000K, or 5000K — directly on the housing without additional hardware. A second physical switch enables or disables the integrated photocell, allowing the unit to operate as either a dusk-to-dawn fixture or a standard switch-controlled light. Rated for more than 50,000 hours of operation, it is suited for installations where long service intervals are a priority.

This mini wall pack is intended for outdoor commercial and residential security lighting on building exteriors, parking areas, walkways, and building entrances. It mounts to any standard wall, post, or column via a universal junction box mounting knockout and includes a conduit entry for surface mounting. The aluminum housing resists corrosion in outdoor environments. The prismatic clear UV-resistant polycarbonate lens diffuses light output to reduce glare, which is useful in areas where occupant comfort or code compliance limits direct glare.

Key Features

• 2000-lumen output at 15 watts for high-efficiency outdoor security lighting
• Selectable color temperature: 3000K, 4000K, or 5000K via physical switch on housing
• 2-in-1 operation: dusk-to-dawn photocell mode or manual switch control, selectable via on-fixture switch
• Corrosion-resistant die-cast aluminum housing rated for outdoor exposure
• Prismatic clear UV-resistant polycarbonate lens for diffuse, glare-free illumination
• 50,000-plus hour rated LED lifespan for reduced maintenance intervals
• Universal junction box knockout plus conduit entry for flexible mounting on walls, posts, or columns

Compatibility

Designed as an OEM-style LED mini wall pack suitable for standard outdoor junction box installations on walls, posts, and columns where a compact, low-wattage security light is required.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out power at the circuit breaker before mounting or wiring the fixture. Verify the junction box is rated for exterior use and is properly weatherproofed before securing the fixture. Set the color temperature and photocell mode switches before completing the final installation to avoid unnecessary disassembly.

Technical Specifications

• Lumen Output: 2000 lumens
• Wattage: 15 watts
• Color Temperature Options: 3000K, 4000K, 5000K (field selectable)
• Photocell: Integrated, enable/disable via physical switch
• Rated Lifespan: 50,000 hours
• Housing Material: Aluminum
• Lens Material: Prismatic clear UV-resistant polycarbonate
• Mounting: Universal junction box knockout, surface mount with conduit entry
• Weight: 10.89 pounds
• Package Quantity: 4 per package

Standard Information

• Brand: COOPER LIGHTING
• Manufacturer Part Number: MWP20FSUNVDBZ
