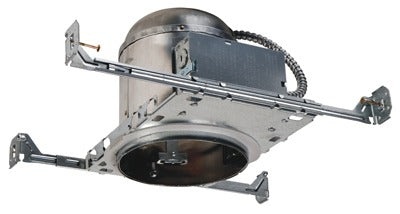

Cooper Lighting E7ICAT 6 Inch New Construction Recessed Housing

Product Description

The COOPER LIGHTING E7ICAT is a 6-inch recessed can housing designed for new construction ceiling installations. It carries an air-tight rating and is approved for use in both insulated and non-insulated ceilings, making it suitable for energy-code-compliant builds. The unit includes all nail bar hangers with a preinstalled nail and an integral T-grid clip for fast, secure positioning in framed or suspended ceiling assemblies. Quick-connect push-in wire nuts are included, and the hinged junction box with Slide-N-Side access simplifies wiring. This housing is cULus listed for damp and wet locations.

This housing is intended for residential and light commercial new construction applications where the ceiling cavity will be insulated or where air-sealing is required by energy code. The socket bracket adjusts to accommodate various trim styles and lamp designs, giving installers flexibility during finish-out. It ships in a package of 6 units, making it practical for tract or production builds where multiple cans are installed per job.

Key Features

• Air-tight construction meets insulated ceiling and energy-code requirements
• Rated for both insulated and non-insulated ceiling applications
• Nail bar hangers with preinstalled nail and integral T-grid clip for fast rough-in
• Pass-N-Thru tool-less hanger bar shortening for quick repositioning between joists
• Hinged junction box with Slide-N-Side access simplifies wire management
• cULus listed for damp and wet location use
• Quick-connect push-in wire nuts included

Compatibility

Designed as a new construction recessed housing compatible with standard 6-inch recessed trim styles and lamp assemblies; socket bracket adjusts to fit various trim designs.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel before making any wiring connections. Secure hanger bars to framing members before ceiling material is applied, and verify the junction box cover is fully closed and latched before restoring power. Confirm the trim and lamp selected are rated for use with an IC-rated air-tight housing.

Technical Specifications

• Housing Size: 6 inches
• Construction Type: New Construction
• Air-Tight Rating: Yes
• Insulation Rating: IC-Rated (Insulated and Non-Insulated Ceilings)
• Location Rating: Damp and Wet Locations
• Listing: cULus
• Package Quantity: 6 units
• Weight: 14.8 pounds

Standard Information

• Brand: COOPER LIGHTING
• Manufacturer Part Number: E7ICAT
