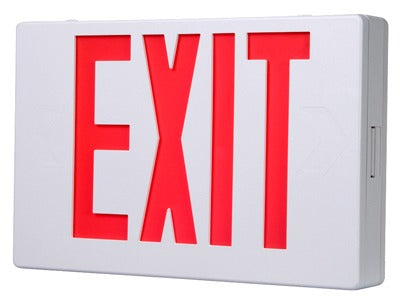

Cooper Lighting APX7R Led Exit Sign 120/277V

Product Description

The COOPER LIGHTING APX7R is an LED exit sign designed for commercial and light-industrial life-safety applications. It features a white thermoplastic housing with red letters and operates on dual voltage input of 120 or 277 volts, consuming less than 2 watts during normal operation. An integrated Ni-Cad battery backup recharges within 24 hours, keeping the sign illuminated during a power loss event. The snap-fit construction allows installation in under 5 minutes, and the included snap-fit canopy simplifies mounting. UL 924 and NFPA 101 compliant, this unit is rated for damp locations and is suitable for most commercial egress applications.

The APX7R is used in commercial, institutional, and multi-family residential settings wherever code-required exit signage is mandated. It can be configured as a single-face or double-face unit, and the directional chevron knockouts allow left, right, or dual arrow indication without additional hardware. The universal J-box mounting pattern accommodates standard electrical box layouts, and the UL Damp Location rating extends installation options to covered exterior walkways, parking structures, and similar environments.

Key Features

• Dual voltage input: 120/277 volts — no separate SKU needed for different circuits
• Ni-Cad battery backup with 24-hour recharge cycle for emergency egress compliance
• Less than 2 watts power consumption during normal operation
• Snap-fit construction and included snap-fit canopy for under 5-minute installation
• Configurable single or double facing with directional chevron knockouts
• Universal J-box mounting pattern fits standard electrical box layouts
• UL 924 and NFPA 101 compliant; UL Damp Location rated

Compatibility

Designed as an OEM-style replacement or new-installation exit sign for commercial egress systems requiring UL 924 and NFPA 101 compliant, dual-voltage LED signage with battery backup.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC Article 700 requirements for emergency lighting and exit signage. De-energize the branch circuit at the panel before wiring. Confirm input voltage matches the circuit supply — 120 or 277 volts — before completing connections. Verify damp or dry location rating requirements for the specific mounting environment prior to final installation.

Technical Specifications

• Voltage: 120/277 volts (dual voltage)
• Power Consumption: Less than 2 watts
• Battery Backup: Ni-Cad, recharges in 24 hours
• Housing Color: White thermoplastic
• Letter Color: Red
• Height: 7.5 inches
• Width: 11.6875 inches
• Depth: 1.75 inches
• Weight: 14.4 pounds
• Location Rating: UL Damp Location
• Certifications: UL 924, NFPA 101
• Unit of Measure: EA
• Package Quantity: 6

Standard Information

• Brand: COOPER LIGHTING
• Manufacturer Part Number: APX7R
