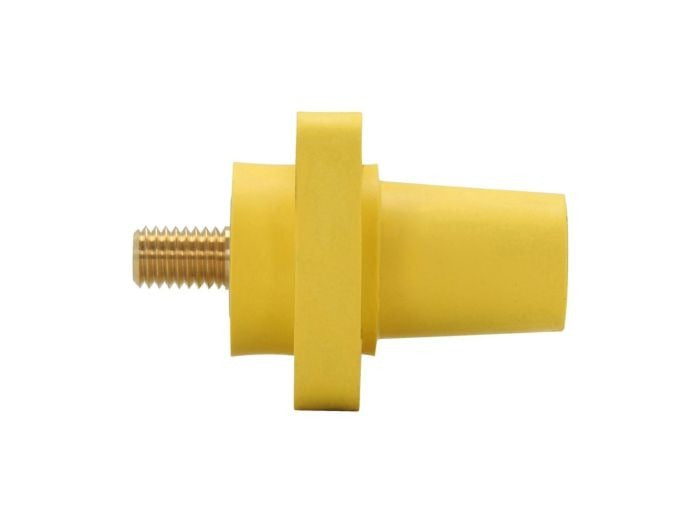

Cooper Interconnect e1016-1635 Cam-lok Receptacle 600V 400A

Product Description

The COOPER INTERCONNECT e1016-1635 is a female CAM-LOK receptacle connector from Eaton's Crouse-Hinds J Series, rated for 600 volts AC and 400 amps continuous duty. The body is molded from Thermoplastic Elastomer (TPE), which provides flexibility and resistance to environmental exposure. Contacts are brass construction, offering reliable conductivity under high-current load. This receptacle is designed for temporary power distribution applications where quick-connect, high-ampacity connections are required. It carries a NEMA 3R rating, making it suitable for outdoor or semi-protected environments exposed to rain and weather. Licensed electricians and power distribution technicians are the typical installers.

The e1016-1635 is used in temporary power distribution systems common on construction sites, event venues, film and entertainment production, industrial facilities, and utility applications. The J Series CAM-LOK format is a widely adopted standard for high-current temporary power assemblies. The green color coding identifies this connector for use in specific phase or neutral position assignments per job-site or system convention. The 90-degree body orientation suits installations where cable routing requires a right-angle exit from the connection point.

Key Features

• 600 VAC rating supports high-voltage temporary power distribution systems
• 400 A current rating for heavy-load temporary power applications
• CAM-LOK style connection for fast, tool-free mating and unmating under load protocols
• TPE body provides durability and flexibility in outdoor and industrial environments
• NEMA 3R rated for use in rain-exposed or outdoor locations
• CSA and UL approved for use in North American installations
• Green color coding for phase or position identification in multi-connector assemblies

Compatibility

Designed for use with CAM-LOK J Series temporary power distribution systems. Compatible connectors and mating plugs must match the J Series 400 A, 600 V CAM-LOK specification. Verify stud size compatibility of 1/2 inch-13 x 3/4 inch before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the power source completely before connecting or disconnecting this receptacle. Inspect the TPE body and brass contacts for damage or contamination before each use. Do not exceed the 400 A or 600 VAC ratings under any operating condition.

Technical Specifications

• Voltage Rating: 600 VAC
• Current Rating: 400 A
• Connection Type: Receptacle, Female
• Connector Style: CAM-LOK, 90 degrees
• Product Series: J Series
• Insulation Material: Thermoplastic Elastomer (TPE)
• Contact Material: Brass
• Stud Size: 1/2 inch-13 x 3/4 inch
• NEMA Rating: NEMA 3R
• Color: Green
• Approvals: CSA, UL
• Net Weight: 0.515 pounds
• Gross Weight: 1 pound

Standard Information

• Brand: COOPER INTERCONNECT
• Manufacturer Part Number: e1016-1635
