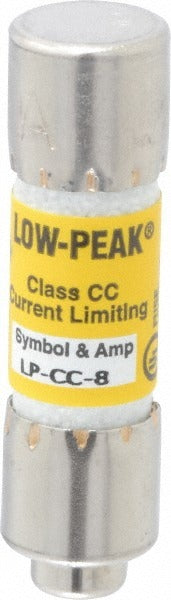

Cooper Bussmann LP-CC-8 Time Delay Cartridge Fuse 8A Cc

Product Description

The COOPER BUSSMANN LP-CC-8 is a time delay cartridge fuse rated at 8 amps in the CC fuse class. It is designed for general-purpose overcurrent protection in control circuits, motor branch circuits, and low-voltage electrical panels. The dual-element, time delay design allows temporary inrush currents to pass without nuisance tripping while still providing fast response to sustained overloads and short circuits. At 1.5 inches in length and 10.3 mm in diameter, the LP-CC-8 fits standard CC-rated fuse holders. Licensed electricians and industrial maintenance technicians are the primary installers of this fuse type.

The LP-CC-8 is suited for residential, commercial, and light industrial control panels where CC-class fusing is specified. It is commonly installed in motor control centers, HVAC control circuits, and transformer secondary circuits that require time delay protection. The compact cartridge body fits into any fuse holder or block rated for the CC class. Its interrupting ratings of 20 kA at DC and 200 kA at AC (RMS) make it appropriate for systems with high available fault current.

Key Features

• Time delay dual-element design tolerates motor inrush and transformer magnetizing current without nuisance tripping
• 8 amp rating in the CC fuse class
• High interrupting capacity: 20 kA at DC and 200 kA at AC (RMS)
• Compact cartridge body: 1.5 inches long, 10.3 mm diameter
• CE Certified, CSA Certified (Class 1422-02 File 53787), and UL Listed (248-4 Guide JDDZ File E4273)
• Mounts in standard CC-class fuse holders

Compatibility

Designed for use in any fuse holder or fuse block rated for CC-class cartridge fuses. Confirm the holder is rated for the amperage and voltage requirements of the circuit before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before removing or installing any fuse. Verify that the replacement fuse class, amperage, and voltage rating match the circuit requirements exactly. Do not install a fuse with a higher amperage rating than the circuit is designed to carry.
