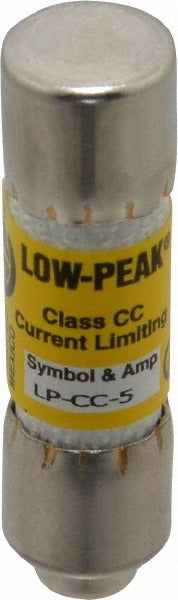

Cooper Bussmann LP-CC-5 Time Delay Cartridge Fuse 5A Cc

Product Description

The COOPER BUSSMANN LP-CC-5 is a time delay cartridge fuse rated at 5 amps in the CC fuse class. It is designed for general purpose overcurrent protection in control circuits, motor branch circuits, and industrial control panels. The dual-element, time delay design allows it to ride through harmless inrush currents while still opening quickly under sustained overload or short-circuit conditions. With an interrupting rating of 200 kA at AC (RMS) and 20 kA at DC, this fuse provides a high level of fault current protection in compact form. Licensed electricians and control panel builders install this fuse in standard CC fuse holders.

The LP-CC-5 is suited for residential and commercial electrical applications where CC class fusing is specified. It fits standard CC-rated fuse holders and is commonly used in motor control circuits, transformer primary protection, and industrial control equipment. Its compact cartridge body measures 1.5 inches in overall length with a 10.3 mm diameter, making it compatible with space-constrained panel and fuse block installations. It is sold individually but must be ordered in multiples of 10.

Key Features

• 5 amp time delay rating suitable for motor and control circuit inrush tolerance
• 200 kA interrupting rating at AC (RMS) for high fault current protection
• 20 kA interrupting rating at DC
• Dual-element construction provides both overload and short-circuit protection
• CC fuse class body fits standard CC fuse holders
• CE Certified, CSA Certified, and UL Listed to recognized safety standards

Compatibility

Designed for use with standard CC-class fuse holders. Install only in fuse holders rated for CC class cartridge fuses at the appropriate voltage and amperage. Specific holder compatibility should be verified against holder manufacturer documentation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize the circuit and verify absence of voltage before removing or installing fuses. Use an insulated fuse puller rated for the circuit voltage when handling cartridge fuses. Never replace a fuse with a unit of higher amperage rating than specified by the circuit design.
