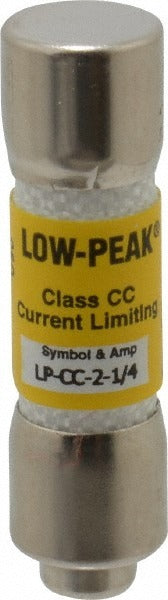

Cooper Bussmann LP-CC-2-1/4 Cc Time Delay Fuse 2.25A

Product Description

The COOPER BUSSMANN LP-CC-2-1/4 is a Class CC time delay cartridge fuse rated at 2.25 amps. It provides overcurrent protection in low-voltage control circuits and branch circuits where a short time delay is required to ride through inrush currents without nuisance tripping. The fuse measures 1.5 inches in overall length and 10.3 mm in diameter, fitting standard CC-class fuse holders. It carries an interrupting rating of 200 kiloamps at AC (RMS) and 20 kiloamps at DC, making it suitable for demanding industrial and commercial control applications. Licensed electricians and controls technicians are the primary installers.

This fuse is designed for use in control panels, motor control circuits, and low-voltage distribution systems where Class CC fusible protection is specified. The time delay characteristic allows temporary overload currents, such as motor starting inrush, to pass without opening the circuit while still providing fast response to sustained fault conditions. It is appropriate for both residential and light commercial panel applications where CC-class fuse holders are installed.

Key Features

• Class CC time delay fuse rated at 2.25 amps for precise overcurrent protection
• High interrupting rating of 200 kA at AC (RMS) and 20 kA at DC
• Compact cartridge body: 1.5 inches long, 10.3 mm diameter for standard CC holders
• Dual-element construction with 2 fuse elements for time delay performance
• CE Certified, CSA Class 1422-02 File 53787 Certified, and UL Listed 248-4 Guide JDDZ File E4273

Compatibility

Designed for use in standard Class CC fuse holders. The CC class designation ensures dimensional and electrical interchangeability with other Class CC-rated fuseholders and rejection-style fuse blocks.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local electrical codes. De-energize and lock out the circuit before removing or installing any fuse. Use an appropriately rated fuse puller when handling cartridge fuses; never replace a fuse with a higher ampere rating than specified for the circuit. Verify the fuse holder is rated for Class CC fuses before installation.
