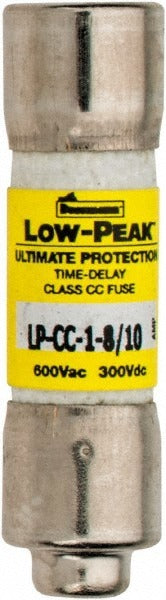

Cooper Bussmann LP-CC-1-8/10 Cc Time Delay Fuse 1.8A

Product Description

The COOPER BUSSMANN LP-CC-1-8/10 is a Class CC time delay cartridge fuse rated at 1.8 amps and designed for general-purpose overcurrent protection in control circuits and industrial electrical systems. With an interrupting rating of 200 kA at AC (RMS) and 20 kA at DC, this dual-element fuse provides robust fault current protection in demanding applications. The cartridge body measures 10.3 mm in diameter and 1.5 inches in overall length, making it a compact fit for standard CC fuse holders. Licensed electricians and industrial maintenance technicians are the primary installers of this fuse class.

This fuse is suited for use in motor control circuits, HVAC control panels, and industrial machine protection where a time delay characteristic is required to ride through harmless inrush currents without nuisance tripping. The CC fuse class is commonly specified in commercial and light industrial installations where a high interrupting rating is mandatory. Its dual-element construction helps distinguish between temporary overloads and sustained fault conditions, reducing unnecessary downtime.

Key Features

• Class CC time delay rating handles temporary inrush without nuisance opens
• High interrupting capacity: 200 kA at AC (RMS) and 20 kA at DC
• Dual-element construction separates overload response from short-circuit response
• Compact cartridge body: 10.3 mm diameter, 1.5 inches overall length
• Mounts in standard CC-class fuse holders
• CE Certified, CSA Certified (Class 1422-02 File 53787), and UL Listed (248-4 Guide JDDZ File E4273)

Compatibility

Designed for use in CC-class fuse holders rated for 1.5-inch cartridge fuses with a 10.3 mm body diameter; verify holder amperage and voltage ratings before installation.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the circuit before removing or installing the fuse. Confirm that the fuse holder is rated for Class CC fuses and matches the circuit voltage and amperage requirements. Never replace a fuse with a higher-amperage unit to resolve repeated opening events; investigate the root cause of the overload first.
