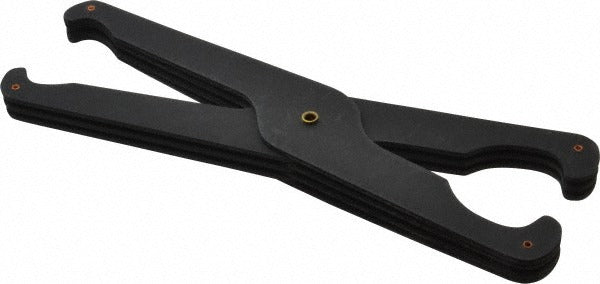

Cooper Bussmann FP-4 Fuse Puller 225-400A 600V Large Fuses

Product Description

The COOPER BUSSMANN FP-4 is a heavy-duty fuse puller designed for safe extraction and installation of large-diameter fuses in industrial and commercial electrical panels. It accommodates fuses ranging from 1-3/4 inches to 2-1/2 inches in diameter, covering 225 to 400 amp fuses rated at 600 volts and 225 to 600 amp fuses rated at 250 volts. Weighing 1.35 pounds, the FP-4 provides the grip and leverage needed to handle high-amperage fuses without direct hand contact, reducing arc flash exposure risk during fuse service. Licensed electricians and industrial maintenance technicians rely on this tool for routine fuse replacement and panel maintenance tasks.

The FP-4 is suited for use in industrial facilities, commercial buildings, and utility service equipment where large cartridge fuses are installed in fused disconnects, panelboards, and switchgear. It is appropriate for applications requiring service of high-amperage branch circuit and feeder fuses in both 250-volt and 600-volt systems. Any environment running high-capacity fusible equipment is a typical deployment scenario for this tool.

Key Features

• Fits fuses from 1-3/4 inches to 2-1/2 inches in diameter
• Rated for use with 225-400 amp, 600-volt fuses
• Rated for use with 225-600 amp, 250-volt fuses
• Reduces direct hand contact with energized or recently loaded fuse elements
• Compact and lightweight at 1.35 pounds for single-hand operation

Compatibility

Designed for use with 1-3/4 inch to 2-1/2 inch diameter cartridge fuses, including 225-400 amp 600-volt fuses and 225-600 amp 250-volt fuses, as specified by the manufacturer.

Installation Notes

Fuse pullers must be used only on de-energized circuits whenever possible; always follow NFPA 70E arc flash safety procedures and use appropriate PPE when servicing live fuse holders. This tool is intended for use by qualified electricians familiar with high-amperage fuse equipment and applicable NEC requirements. Inspect the puller for cracks or deformation before each use and do not exceed the stated fuse diameter range.
