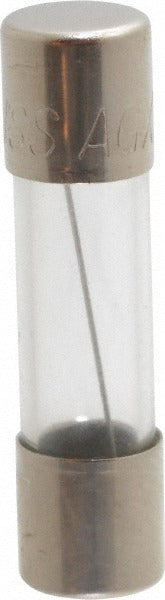

Cooper Bussmann AGX-6 Cartridge Fast-acting Fuse 6A

Product Description

The COOPER BUSSMANN AGX-6 is a glass-body, fast-acting cartridge fuse rated at 6 amps and designed for overcurrent protection in low-voltage control circuits, instrumentation panels, and light electrical equipment. The AGX-6 measures 1 inch in overall length with a 0.25-inch diameter, fitting the standard AGX mini fuse form factor. With an interrupting rating of 10,000 amps at 125 volts and 200 amps at 250 volts, it provides reliable short-circuit protection in compact panel and equipment installations. Licensed electricians, HVAC technicians, and electronics service pros install this fuse wherever a fast-acting AGX-series fuse is required.

The AGX-6 is suited for residential and light commercial applications where low-amperage circuit protection is needed. Common install scenarios include HVAC control boards, low-voltage transformer secondary circuits, small motor controls, and instrumentation equipment. The compact cartridge form factor makes it compatible with standard AGX-style fuse holders and inline fuse clips found throughout control panel wiring. This fuse acts immediately on overcurrent, providing equipment protection where a time-delay fuse would be inappropriate.

Key Features

• Fast-acting response protects sensitive electronic and control circuits from overcurrent damage
• Glass body construction allows visual inspection of the fuse element without removal
• Interrupting rating of 10,000 amps at 125 volts for reliable short-circuit protection
• Standard AGX mini cartridge form factor fits common inline fuse holders and panel fuse clips
• cULus Recognized and UL Listed 248-14 for code-compliant installations

Compatibility

Designed as a direct replacement for AGX-series 6-amp fast-acting glass cartridge fuses in standard AGX-style fuse holders rated for 125 volts or 250 volts service.

Installation Notes

Installation should be performed by a qualified electrician or licensed HVAC technician. De-energize and lock out the circuit before replacing any fuse. Confirm the replacement fuse amperage and voltage rating match the circuit requirements before installing. Never substitute a higher-amperage fuse or bypass the fuse holder.
