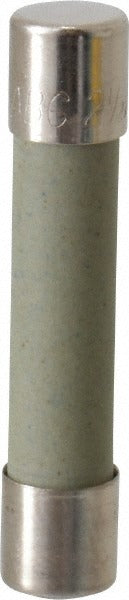

Cooper Bussmann ABC-2-1/2-R Cartridge Fast-acting Fuse 2.5A

Product Description

The COOPER BUSSMANN ABC-2-1/2-R is a mini cartridge fast-acting fuse rated at 2.5 amps. It features a ceramic body measuring 1.25 inches in overall length and 0.25 inches in diameter. Designed for overcurrent protection in low-voltage control circuits, this fuse responds rapidly to fault conditions to protect sensitive downstream components. It carries an interrupting rating of 10,000 amps at 125 volts and 100 amps at 250 volts, making it suitable for a range of panel and equipment protection applications. HVAC technicians, electricians, and equipment service techs commonly install this fuse in control boards, transformers, and instrumentation circuits.

This fuse is used in residential and light commercial applications where a mini cartridge form factor is required. Common installation scenarios include low-voltage HVAC control circuits, electronic equipment enclosures, and panel-mounted fuse holders that accept a 0.25-inch diameter cartridge fuse. It is sold individually with a minimum order quantity of 5 units.

Key Features

• Fast-acting fuse timing for immediate overcurrent response
• Ceramic body construction for thermal durability
• 2.5 amp rating for low-current circuit protection
• 10,000 amp interrupting rating at 125 volts
• Mini cartridge form factor: 1.25 inches OAL, 0.25 inches diameter
• UL Listed (Guide JDYX File E19180) and CSA Certified (File 53787)

Compatibility

Designed as an OEM-style replacement fuse for mini cartridge fuse holders accepting a 0.25-inch diameter, 1.25-inch overall length fast-acting fuse in HVAC control, electrical, and instrumentation applications.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician. Always de-energize the circuit and verify zero voltage with a multimeter before replacing a fuse. Confirm the fuse holder is rated for the cartridge dimensions and voltage of this fuse. Follow applicable NEC guidelines for overcurrent protection device selection and replacement.
